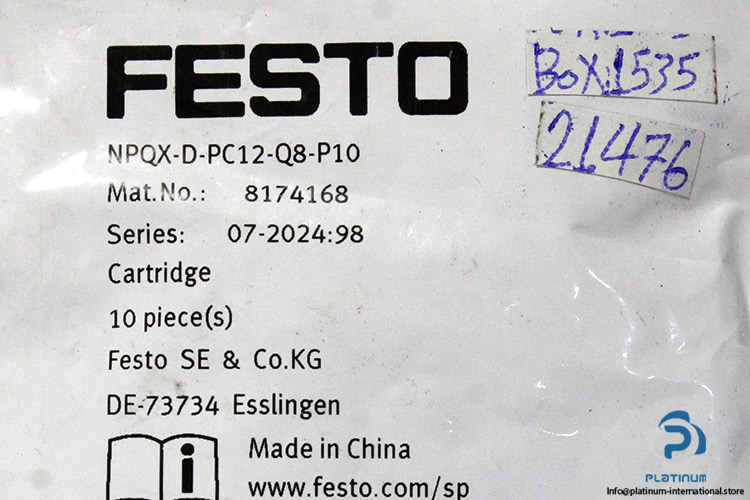

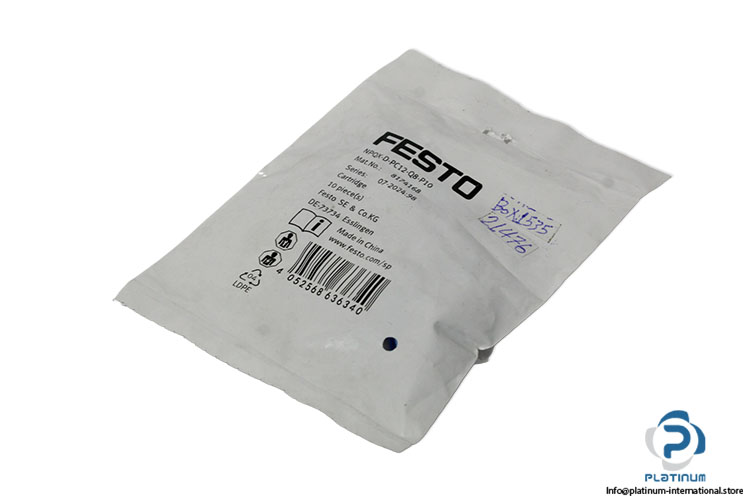

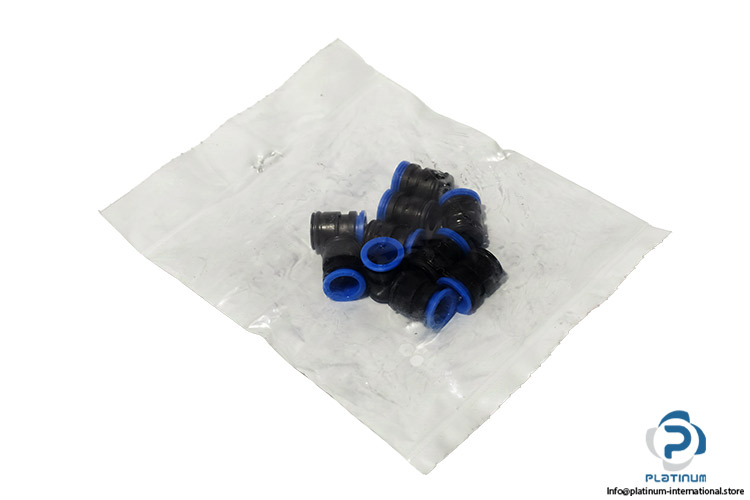

Festo 8174168 Cartridge
New
In stock2 unitsReady to ship
Cartridge FESTO pneumatic cartridge with straight push-pull design for compressed air applications, featuring reinforced PA construction and reliable tubing connection performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 8174168 |
| Series | QS |
| Fluid | Compressed Air |
| Design | Straight Push-Pull Principle |
| Nominal Size | 6 mm |
| Operating Pressure | -0.95 ... 6 bar / -0.095 ... 1.4 MPa |
| Tubing Insertion Depth | 15.2 mm |
| Pneumatic Connection, Port 1 | Cartridge 12 mm |
| Pneumatic Connection, Port 2 | For Tubing Outside Diameter Of 8 mm |
| Material | Reinforced PA |
| Ambient Temperature | -10 ... 80 °C |
| Items Per Set | 10 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102217 |
| Weight | 0,02 |
