Festo 8986 Foot Valve With Detent
New
In stock2 unitsReady to ship
FOOT VALVE WITH DETENT
FESTO FP-3-1/4-B foot valve, manually actuated with poppet seat design, provides reliable 5/2-way control for pneumatic air systems.
Used
In stock 125,00$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

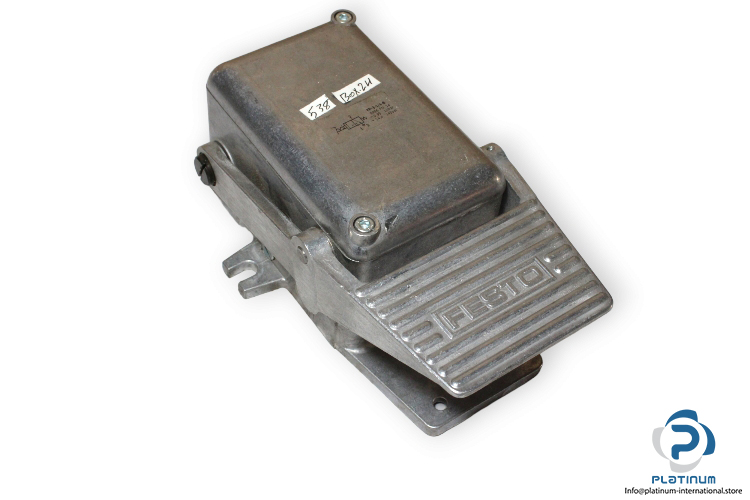

FESTO FP-3-1/4-B FOOT VALVE WITH DETENT
The FESTO FP-3-1/4-B is a high-performance foot valve with detent, engineered for manual pneumatic control applications. Designed with a durable die-cast aluminum body and poppet seat mechanism, it offers reliable operation in demanding industrial environments.
Manufacturer: FESTO
Type: Foot Valve with Detent
Model: FP-3-1/4-B
Part No.: 8986
| Fluid | Air |
| Design | Poppet seat |
| Function | 5/2-way, monostable |
| Type of Actuation | Manually |
| Operating Pressure | -0.95 ... 10 bar |
| Nominal Flow Rate | 600 l/min |
| Actuating Force | 58.5 N |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminum |
| Ambient Temperature | -10 / 60 °C |
