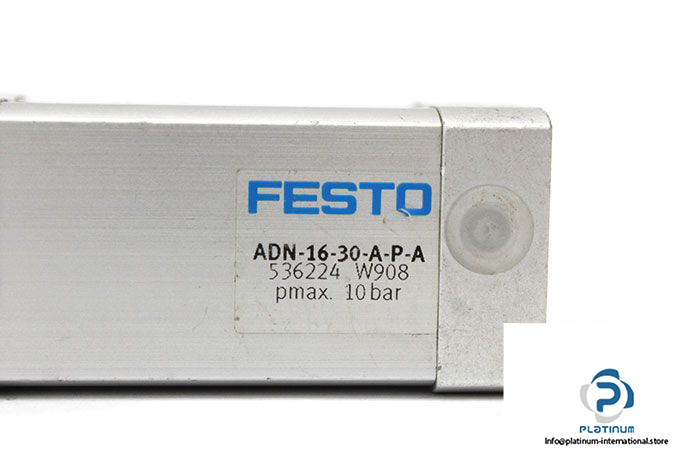

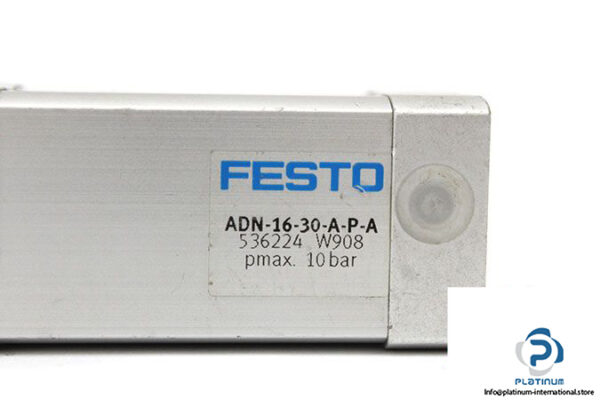

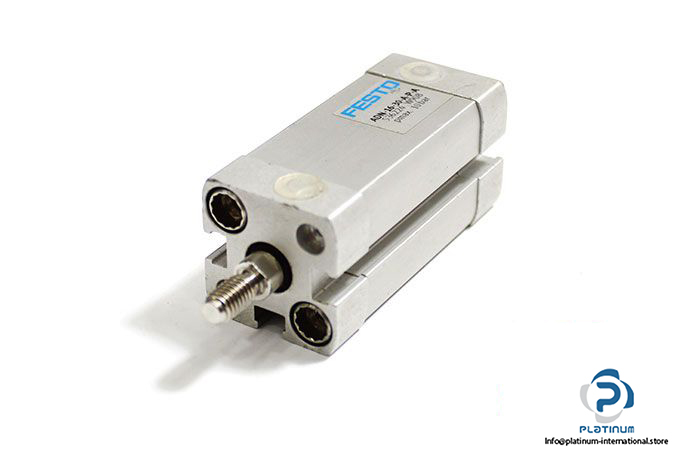

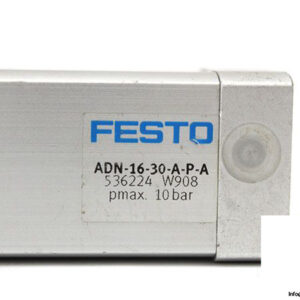

Festo 536224 Compact Cylinder

Manufacturer: FESTO

Type: DOUBLE ACTING COMPACT CYLINDER

Model: ADN-16-30-A-P-A

Part No.: 536224

Material

  Cover: Aluminium Anodized

  Piston rod: High alloy steel

  Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 30 mm

Piston Diameter: 16 mm

Piston Rod Thread: M6

Piston rod end: Male thread

Operating Pressure: 1 … 10 bar

Operating medium: Compressed air

Mode of operation: Double-Acting

Cushioning: Elastic silencer rings / plates double-sided

Impact energy: 0.15 J

Theoretical force at 6 bar, Return flow: 90 N

Pneumatic Connection: M5

Temperature: -20 … 80 °C

Weight: 0.11 kg
