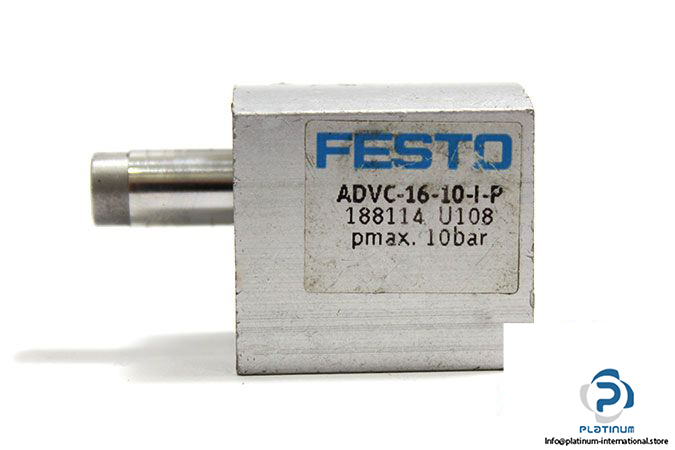

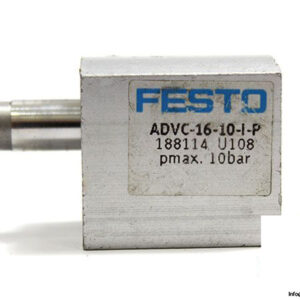

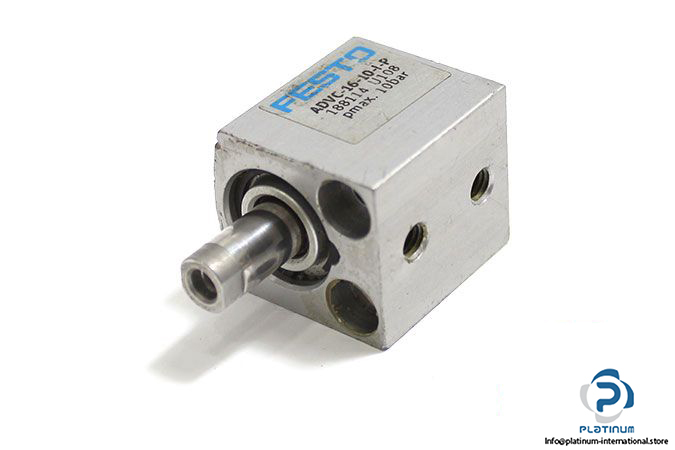

Festo 188114 Short Stroke Cylinder

Manufacturer: FESTO

Type: DOUBLE ACTING SHORT STROKE CYLINDER

Model: ADVC-16-10-I-P

Part No.: 188114

Material

   Cylinder barrel: Anodised aluminium

   Cover cap: Anodised aluminium

   Piston rod: Anodised aluminium High-alloy steel

Stroke Length: 10 mm

Piston Diameter: 16 mm

Piston rod thread: Female thread

Dimensions: 27 x 25 x 32mm

Max. Operating Pressure: 10 bar

Mode of operation: Double-acting

Cushioning: Flexible Cushioning Rings/Plates At Both Ends

Pneumatic Connection: M5

Position sensing: No Position sensing

Temperature: -20 … 80 °C

Weight: 0.045 kg
