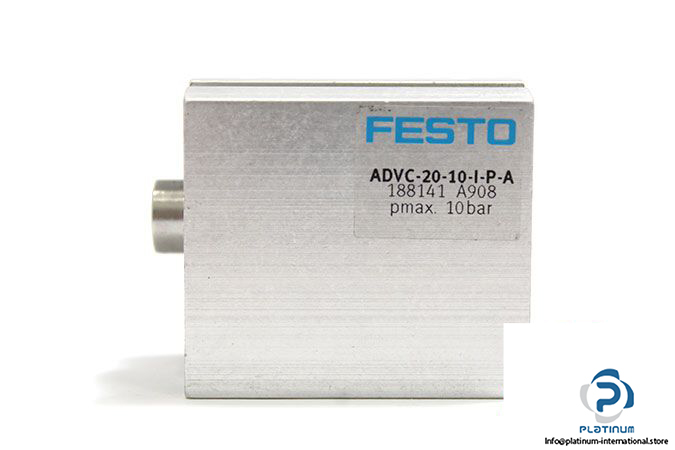

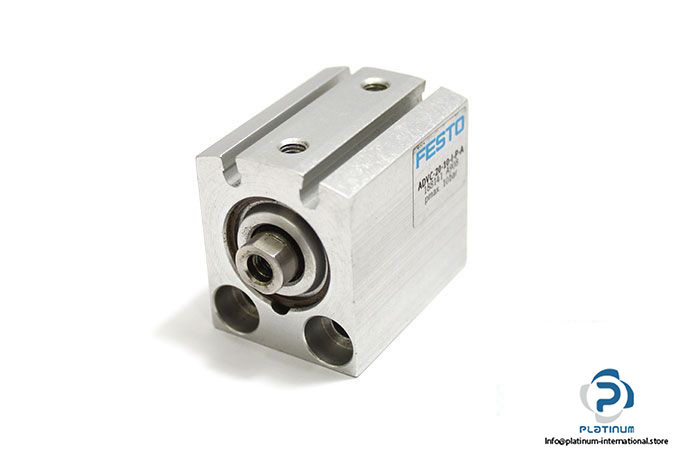

Festo 188141 Short Stroke Cylinder

Manufacturer: FESTO

Type: Double Acting Short Stroke Cylinder

Series: ADVC

Model: ADVC-20-10-I-P-A

Part No.: 188141

Materials

   Cylinder barrel: Anodised aluminium

   Cover cap: Anodised aluminium

   Piston rod: High-alloy steel

Stroke Length: 10 mm

Piston Diameter: 20 mm

Piston rod thread: Female thread

Dimensions: 34 x 32 x 37 mm

Max. Operating Pressure: 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Pneumatic Connection: M5

Position sensing: For proximity sensing

Temperature: -20 … 80 °C

Weight: 0.125 kg
