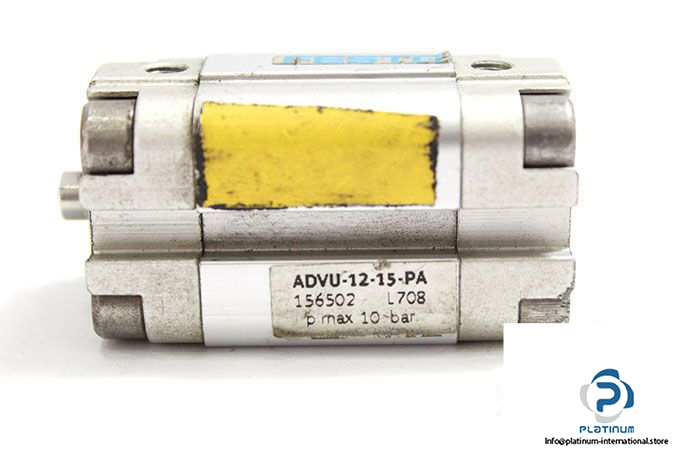

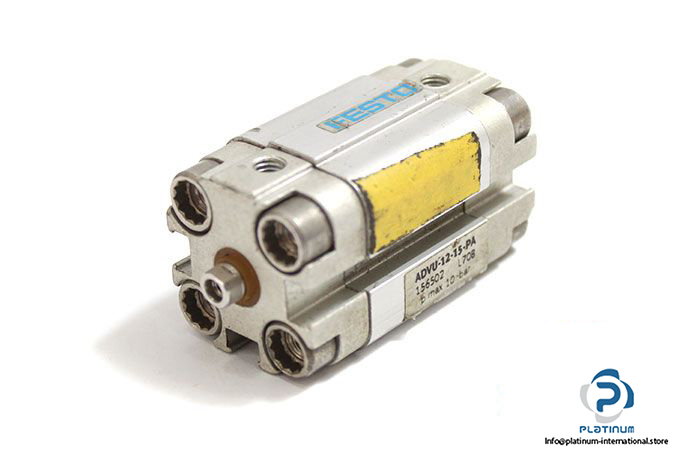

Festo 156502 Compact Cylinder

Manufacturer: FESTO

Type: DOUBLE ACTING COMPACT CYLINDER

Model: ADVU-12-15-PA

part No.: 156502

Material

  Cover: Aluminium wrought alloy

  Piston rod: High-alloyed stainless steels

  Cylinder tube: Aluminium wrought alloy

Stroke Length: 15 mm

Bore Diameter: 12 mm

Piston rod end: Female thread

Construction set up: Piston piston rod

Variants: One-sided piston rod

Operating Pressure: 1.2 … 10 bar

Operating medium: Compressed air

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Theoretical force at 6 bar, Return flow: 51 N

Pneumatic Connection: M5

Temperature: -20 … 80 °C

Weight: 0.112 kg
