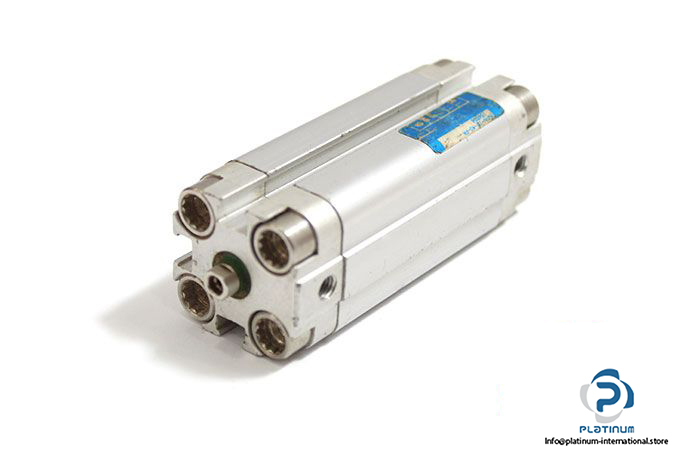

Festo 156506 Compact Cylinder

Manufacturer: FESTO

Type: DOUBLE ACTING COMPACT CYLINDER

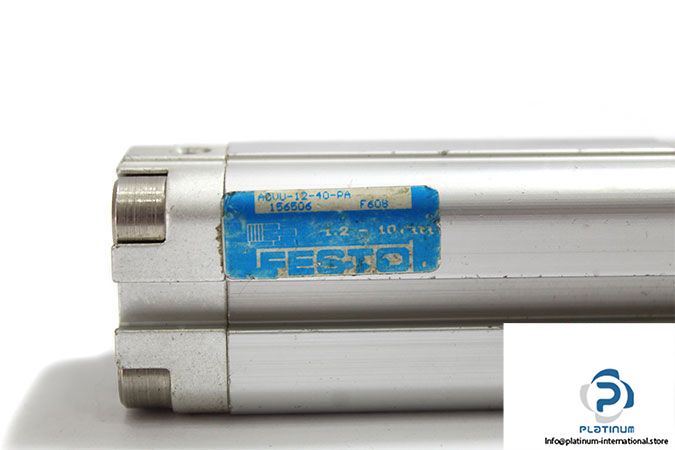

Model: ADVU-12-40-P-A

Part No.: 156506

Material

  Cover: Wrought Aluminum alloy

  Piston rod: High alloy steel, non-corrosive

  Cylinder barrel: Wrought Aluminum alloy

Stroke Length: 40 mm

Bore Diameter: 12 mm

Piston rod end: Female thread

Operating Pressure: 1.2 … 10 bar

Operating medium: Compressed air

Mode of operation: Double-acting

Assembly position: Any

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Impact energy: 0.07 J

Theoretical force at 6 bar, Return Stroke: 51 N

Pneumatic Connection: M5

Corrosion resistance classification: 2

Temperature: -20 … 80 °C

Weight: 0.152 kg
