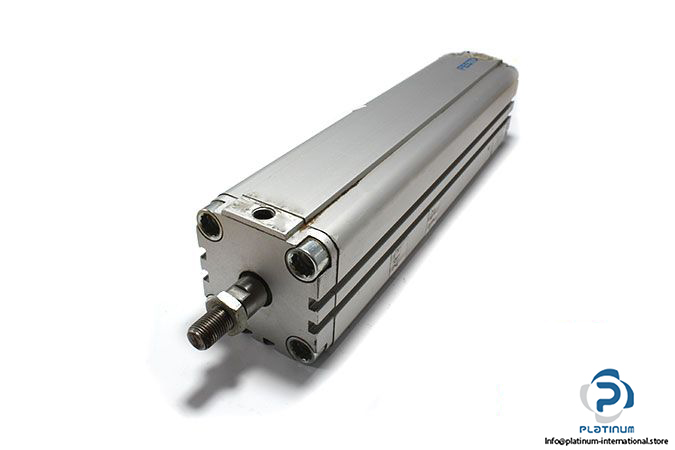

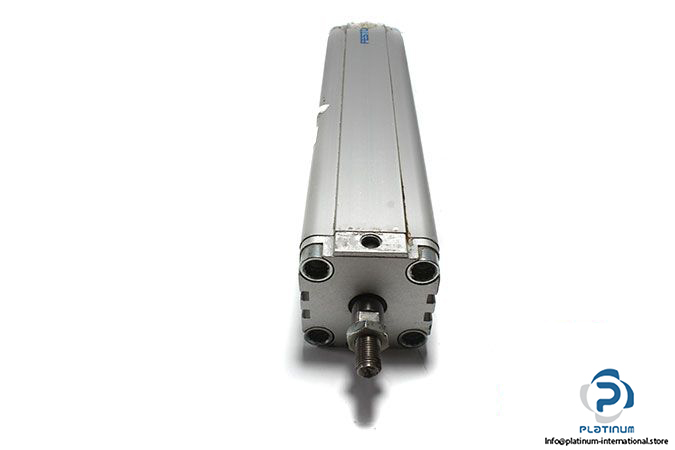

Festo ADVU-50-260-A-P-A Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

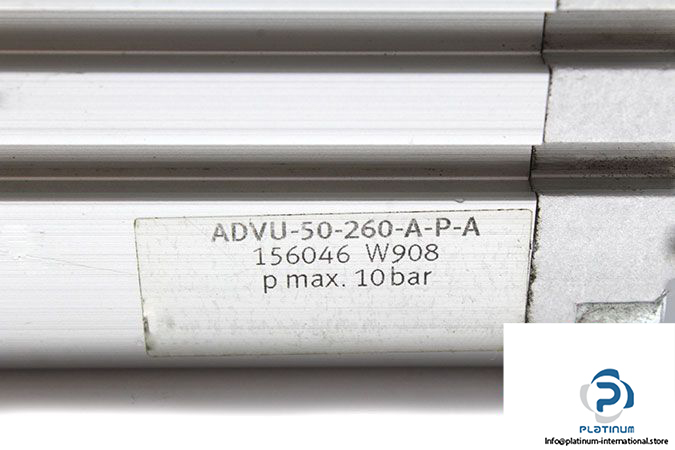

Model: ADVU-50-260-A-P-A

Part No.: 156046

Materials

,,Piston rod: High alloy stainless steel

,,Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 260 mm

Piston Diameter: 50 mm

Piston rod end: Male thread

Operating Pressure: 0.8 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: G 1/8

Temperature: -20 … 80 °C

Weight: 2.50 kg
