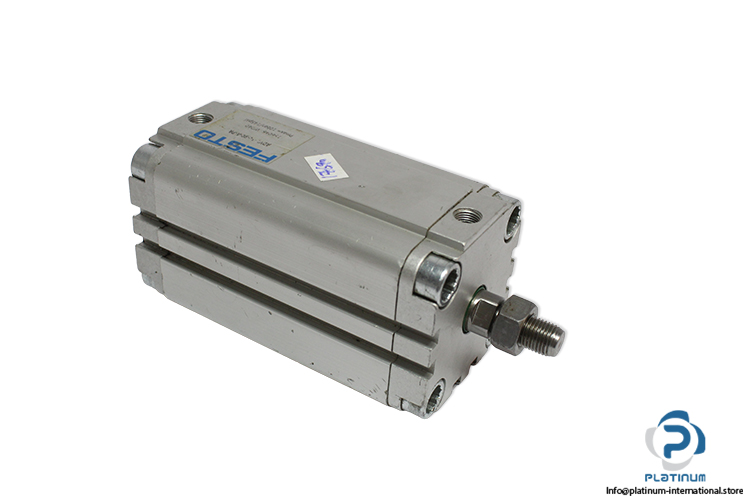

Festo ADVU-50-90-A-PA Compact Cylinder

Festo ADVU-50-90-A-PA Compact Cylinder

A high-performance compact pneumatic cylinder from Festo™s renowned ADVU series, engineered for precise, efficient, and space-saving actuation. Designed for industrial environments requiring reliable double-acting functionality, strong output force, and smooth motion control. Manufacturer: Festo
Type: Compact Cylinder

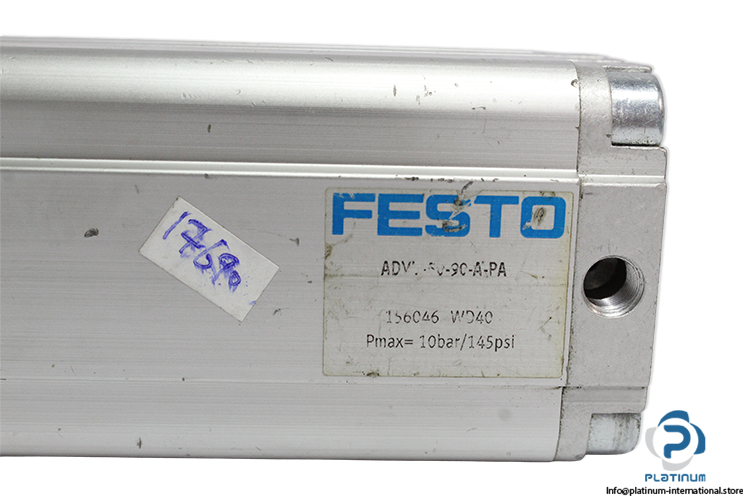

Model: ADVU-50-90-A-PA
Part No.: 156046
Code: WD40
Series: ADVU
Operating Medium: Compressed air
Stroke Length: 90 mm
Piston Diameter: 50 mm
Piston Rod End: Male thread
Max. Operating Pressure: 10 bar
Mode of Operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensor
Variants: Piston rod at one end
Pneumatic Connection: G1/8
Ambient Temperature: -20 to 80°C
Cover Material: Wrought aluminum alloy
Material Piston Rod: High-alloy steel
Material Cylinder Barrel: Wrought aluminum alloy

Why This Product Stands Out:
The Festo ADVU-50-90-A-PA compact cylinder offers exceptional durability, high force output, and precise movement within a compact footprint. Its double-acting operation and integrated cushioning ensure quiet and smooth actuation, while the robust aluminum alloy construction guarantees long service life. Designed for applications requiring accurate positioning, consistent performance, and compatibility with proximity sensors for automated feedback control.

Recommended For:
This cylinder is ideal for automated machinery, motion systems, pick-and-place units, packaging machines, and compact mechanical assemblies. For enhanced system performance, pair it with complementary components such as Pneumatic Actuators, Sensors, and Pneumatic Valves. These combinations help maximize efficiency, increase automation accuracy, and extend the life of your pneumatic system.
