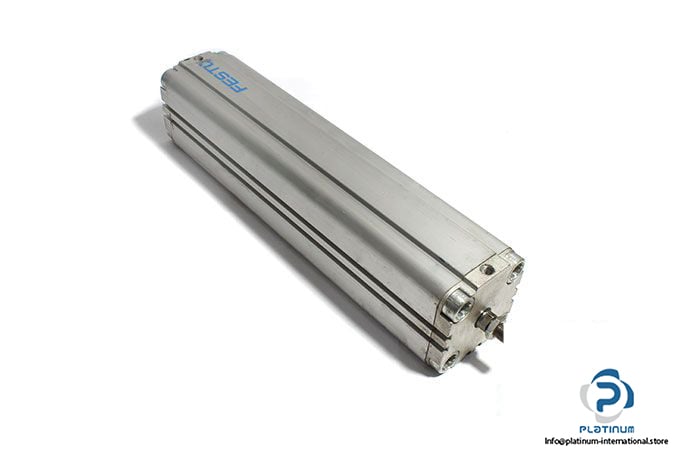

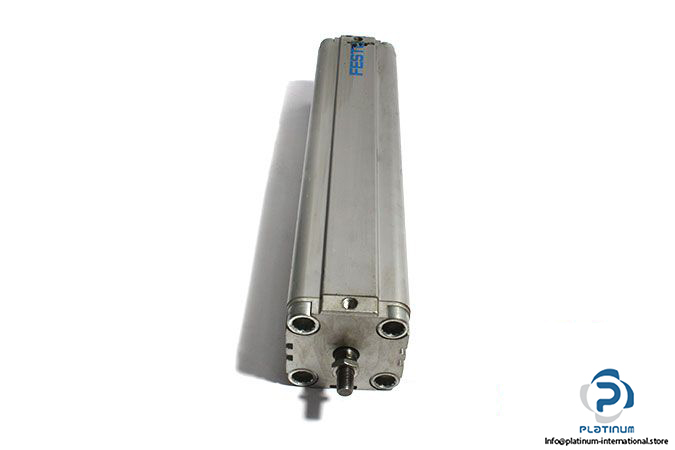

Festo ADVU-63-350-A-P-A Compact Cylinder

Manufacturer: FESTO

Type: Compact Cylinder

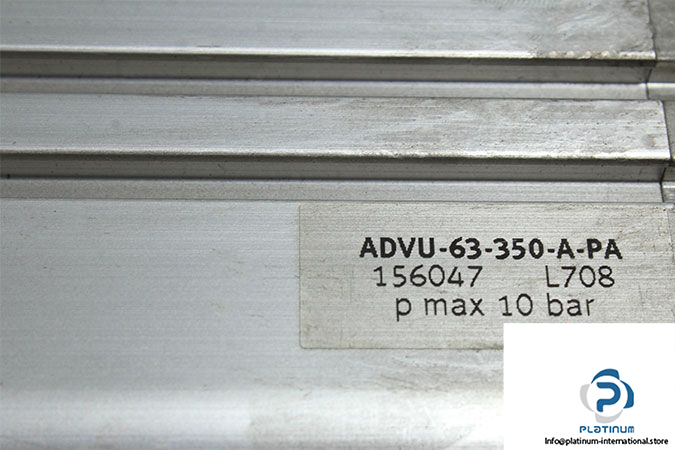

Model: ADVU-63-350-A-P-A

Part No.: 156047



Stroke Length: 350 mm

Piston Diameter: 63 mm

Piston rod thread: Male

Max. Operating Pressure: 10 bar

Mode of operation: Double acting

Cushioning: Elastic cushioning rings/pads at both ends

Position Sensing: For proximity sensing

Piston rod material: High-alloy steel

Cover material: Wrought aluminum alloy

Pneumatic Connection: G1/8

Temperature: -20 … 80 °C

Weight: 4.8 kg
