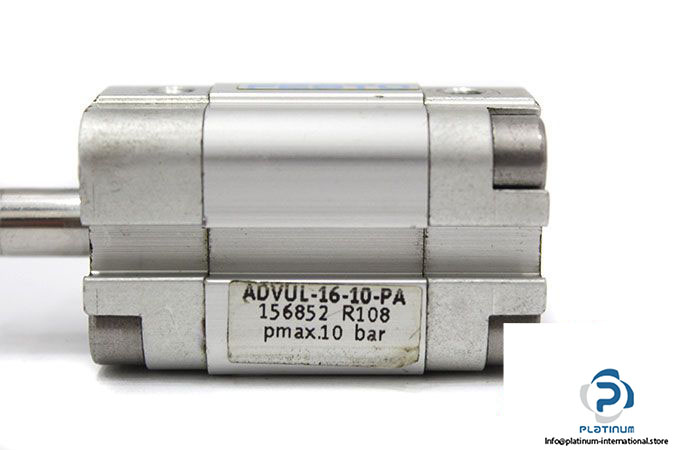

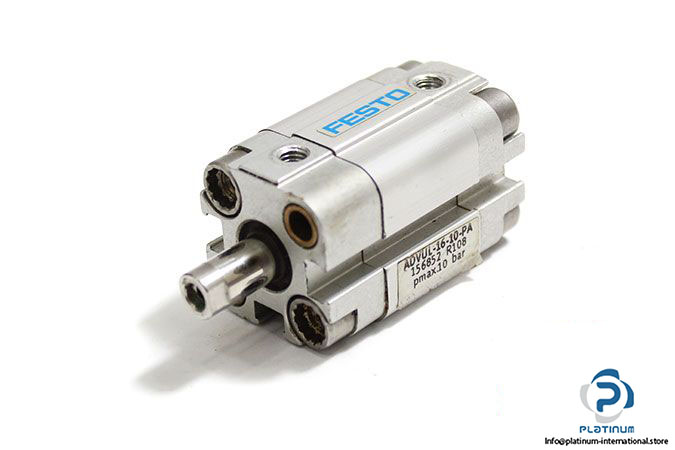

Festo 156852 Compact Cylinder

Manufacturer: FESTO

Type: DOUBLE ACTING COMPACT CYLINDER

Model: ADVUL-16-10-P-A

Part No.: 156852

Material

  Cover: Wrought Aluminum alloy

  Piston rod: High alloy steel

  Cylinder barrel: Wrought Aluminum alloy

Stroke Length: 10 mm

Piston Diameter: 16 mm

Operating Pressure: 1.5 … 10 bar

Operating medium: Compressed air

Mode of operation: Double-Acting

Cushioning: Elastic silencer rings / plates double-sided

Impact energy: 0.1 J

Theoretical force at 6 bar, Return flow: 90 N

Pneumatic Connection: M5

Corrosion resistance classification: 2

Temperature: -20 … 80 °C

Weight: 0.10 kg
