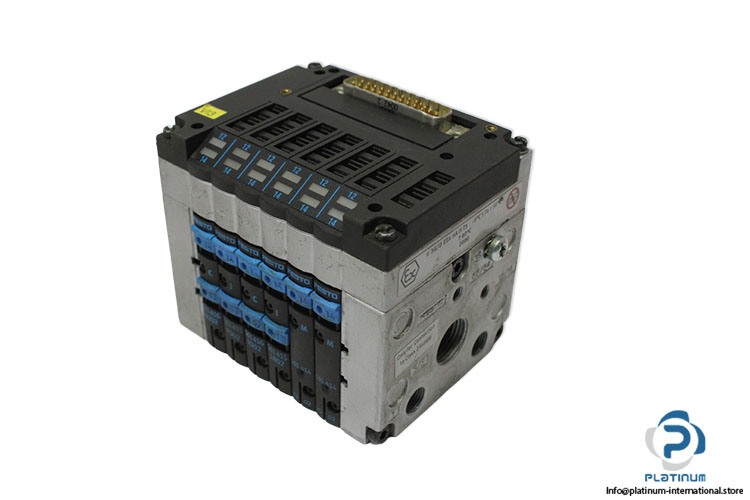

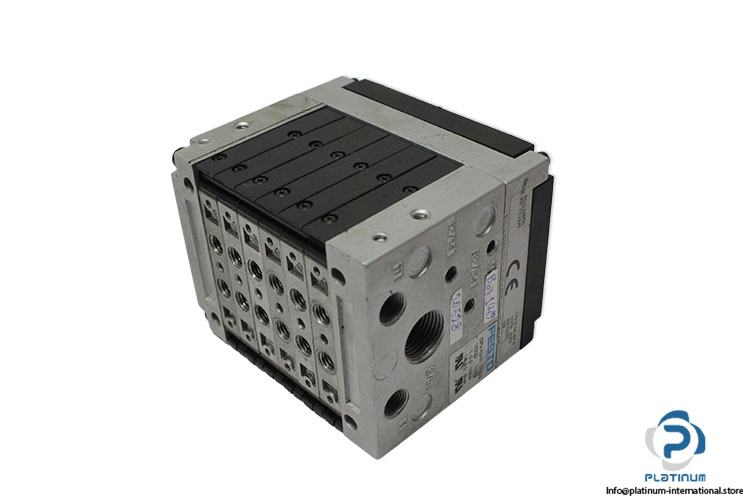

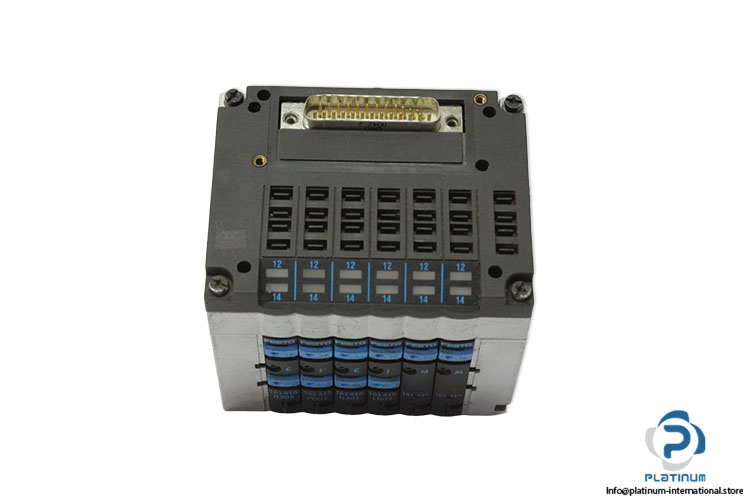

Festo CPV-10-VI 01533 6-WAY Valve Terminal
Used
In stock1 unitReady to ship
6-Way Valve Terminal The FESTO CPV-10-VI 01533 is an electrically actuated 6-way valve terminal for compressed-air systems, supplied with FESTO solenoid valves and an electrical interface.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 18200 |
| Medium | Compressed Air |
| Actuation | Electrically |
| Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Pilot Pressure | 3 ... 8 bar |
| Flow Rate | 400 l/min at 10 mm |
| Protection Class | IP65 |
| Temperature | -5 … 50 °C |
| Port Size | G1/8 & G3/8 |

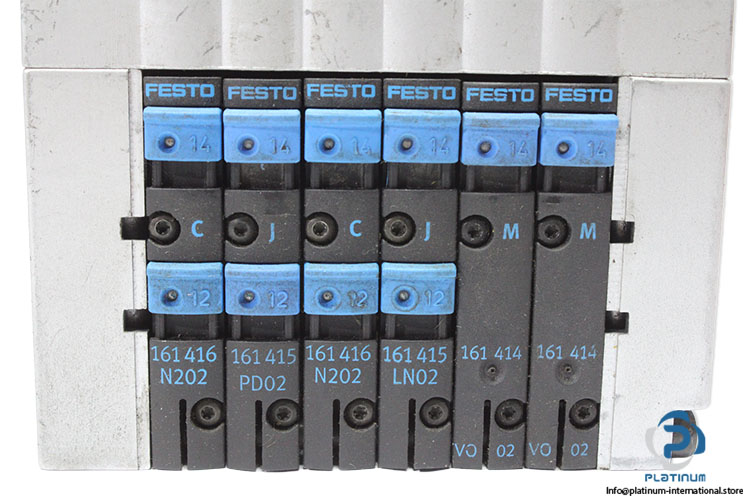

| Attachment 1 | FESTO 161414 SOLENOID VALVE |
| Solenoid Valve Manufacturer | FESTO |
| Attachment 1 Type | Solenoid Valve |
| Solenoid Valve Model | CPV10-M1H-5LS-M7 |
| Solenoid Valve Part No. | 161414 |
| Solenoid Valve Medium | Compressed Air |
| Solenoid Valve Size | 10 mm |
| Solenoid Valve Design | Piston Gate Valve |
| Solenoid Valve Function | 5/2-Way, Single Solenoid |
| Solenoid Valve Actuation | Electrically |
| Solenoid Valve Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Solenoid Valve Pilot Pressure | 3 ... 8 bar |
| Solenoid Valve Flow Rate | 400 l/min |
| Solenoid Valve Operating Voltage | 24 V DC |
| Solenoid Valve Power Consumption | 0.46 W |
| Solenoid Valve Pneumatic Connection | 7 mm |
| Solenoid Valve Material | Die-Cast Aluminium |
| Solenoid Valve Protection Class | IP65 |
| Solenoid Valve Temperature | -5 … 50 °C |
| Attachment 2 | FESTO 161416 SOLENOID VALVE |
| Solenoid Valve 2 Manufacturer | FESTO |
| Attachment 2 Type | Solenoid Valve |
| Solenoid Valve 2 Model | CPV10-M1H-2X3-GLS-M7 |
| Solenoid Valve 2 Part No. | 161416 |
| Solenoid Valve 2 Medium | Compressed Air |
| Solenoid Valve 2 Size | 10 mm |
| Solenoid Valve 2 Design | Piston Gate Valve |
| Solenoid Valve 2 Function | 2x3/2 Closed Monostable |
| Solenoid Valve 2 Actuation | Electrically |
| Solenoid Valve 2 Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Solenoid Valve 2 Pilot Pressure | 3 ... 8 bar |
| Solenoid Valve 2 Flow Rate | 400 l/min |
| Solenoid Valve 2 Operating Voltage | 24 V DC |
| Solenoid Valve 2 Power Consumption | 0.46 W |
| Solenoid Valve 2 Pneumatic Connection | 7 mm |
| Solenoid Valve 2 Material | Die-Cast Aluminium |
| Solenoid Valve 2 Protection Class | IP65 |
| Solenoid Valve 2 Temperature | -5 … 50 °C |
| Attachment 3 | FESTO 161415 SOLENOID VALVE |
| Solenoid Valve 3 Manufacturer | FESTO |
| Attachment 3 Type | Solenoid Valve |
| Solenoid Valve 3 Model | CPV10-M1H-5JS-M7 |
| Solenoid Valve 3 Part No. | 161415 |
| Solenoid Valve 3 Medium | Compressed Air |
| Solenoid Valve 3 Size | 10 mm |
| Solenoid Valve 3 Design | Piston Gate Valve |
| Solenoid Valve 3 Function | 5/2-Way, Double Solenoid |
| Solenoid Valve 3 Actuation | Electrically |
| Solenoid Valve 3 Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Solenoid Valve 3 Pilot Pressure | 3 ... 8 bar |
| Solenoid Valve 3 Flow Rate | 400 l/min |
| Solenoid Valve 3 Operating Voltage | 24 V DC |
| Solenoid Valve 3 Power Consumption | 0.65 W |
| Solenoid Valve 3 Pneumatic Connection | 7 mm |
| Solenoid Valve 3 Material | Die-Cast Aluminium |
| Solenoid Valve 3 Protection Class | IP65 |
| Solenoid Valve 3 Temperature | -5 … 50 °C |
| Attachment 4 | FESTO 18254 ELECTRICAL INTERFACE |
| Electrical Interface Manufacturer | FESTO |
| Attachment 4 Type | Electrical Interface |

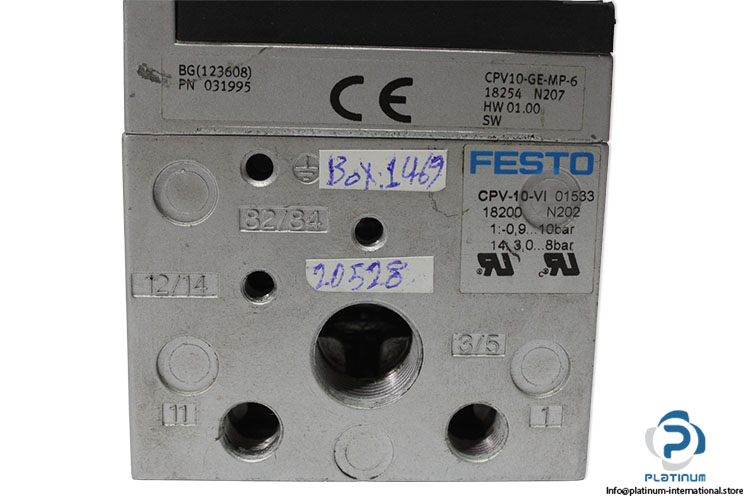

| Electrical Interface Model | CPV10-GE-MP-6 |
| Electrical Interface Part No. | 18254 |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1103091 |
| Weight | 0,72 |
