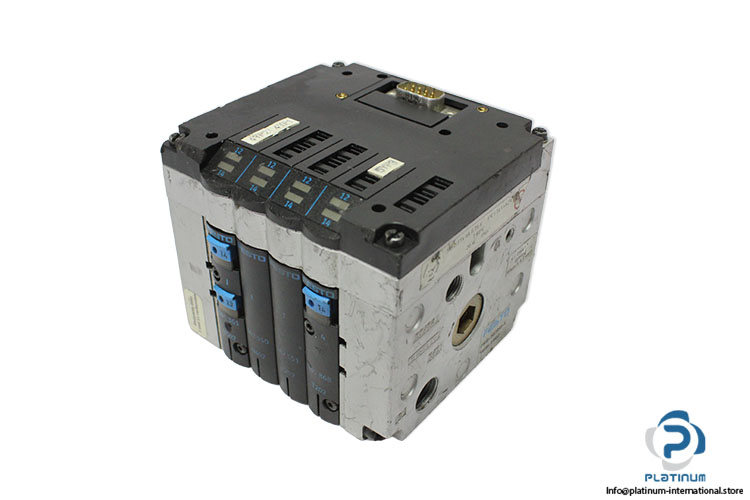

Festo CPV-14-VI 90552 4-WAY Valve Terminal
Used
In stock1 unitReady to ship
4-Way Valve Terminal The FESTO CPV-14-VI 90552 is an electrically actuated pneumatic valve terminal for compressed-air control, featuring IP65 protection and integrated FESTO components.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 18210 |
| Medium | Compressed Air |
| Actuation | Electrically |
| Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Pilot Pressure | 3 ... 8 bar |
| Flow Rate | 800 l/min at 14 mm |
| Protection Class | IP65 |
| Temperature | -5 … 50 °C |
| Port Size | G1/2 & G1/4 & G1/8 |

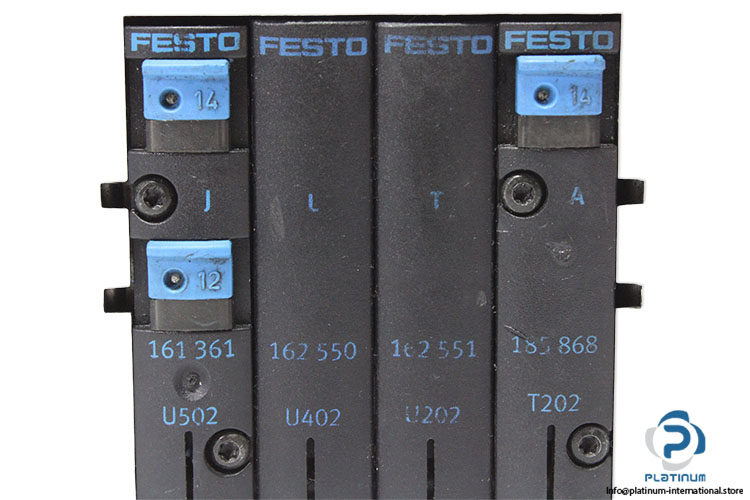

| Attachment 1 | FESTO 161361 SOLENOID VALVE |
| Solenoid Valve Manufacturer | FESTO |
| Attachment 1 Type | Solenoid Valve |
| Solenoid Valve Model | CPV14-M1H-5JS-1/8 |
| Solenoid Valve Part No. | 161361 |
| Solenoid Valve Medium | Compressed Air |
| Solenoid Valve Size | 14 mm |
| Solenoid Valve Design | Piston Gate Valve |
| Solenoid Valve Function | 5/2-Way, Double Solenoid |
| Solenoid Valve Actuation | Electrically |
| Solenoid Valve Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Solenoid Valve Pilot Pressure | 3 ... 8 bar |
| Solenoid Valve Flow Rate | 800 l/min |
| Solenoid Valve Operating Voltage | 24 V DC |
| Solenoid Valve Power Consumption | 0.65 W |
| Solenoid Valve Port Size | G1/8 |
| Solenoid Valve Material | Die-Cast Aluminium |
| Solenoid Valve Protection Class | IP65 |
| Solenoid Valve Temperature | -5 … 50 °C |
| Attachment 2 | FESTO 162550 BLANKING PLATE |
| Blanking Plate 1 Manufacturer | FESTO |
| Attachment 2 Type | Blanking Plate |
| Blanking Plate 1 Model | CPV14-RZP |
| Blanking Plate 1 Part No. | 162550 |
| Attachment 3 | FESTO 162551 BLANKING PLATE |
| Blanking Plate 2 Manufacturer | FESTO |
| Attachment 3 Type | Blanking Plate |
| Blanking Plate 2 Model | CPV14-DZP |
| Blanking Plate 2 Part No. | 162551 |
| Attachment 4 | FESTO 185868 VACUUM GENERATOR |
| Vacuum Generator Manufacturer | FESTO |
| Attachment 4 Type | Vacuum Generator |
| Vacuum Generator Model | CPV14-M1H-V95-1/8 |
| Vacuum Generator Part No. | 185868 |
| Vacuum Generator Medium | Compressed Air |
| Vacuum Generator Nominal Size, Laval Nozzle | 0.95 mm |
| Vacuum Generator Vacuum Max. | 85 % |
| Vacuum Generator Operating Pressure | 3 ... 8 bar |
| Vacuum Generator Material | Die-Cast Aluminium |
| Vacuum Generator Pneumatic Connection, Port 1/2 | Sub-Base |
| Vacuum Generator Vacuum Connection | G1/8 |
| Vacuum Generator Ambient Temperature | 0 ... 50 °C |
| Attachment 5 | FESTO 18263 ELECTRICAL INTERFACE |
| Electrical Interface Manufacturer | FESTO |
| Attachment 5 Type | Electrical Interface |
| Electrical Interface Model | CPV14-GE-MP 4 |
| Electrical Interface Part No. | 18263 |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1103098 |
| Weight | 0,82 |
