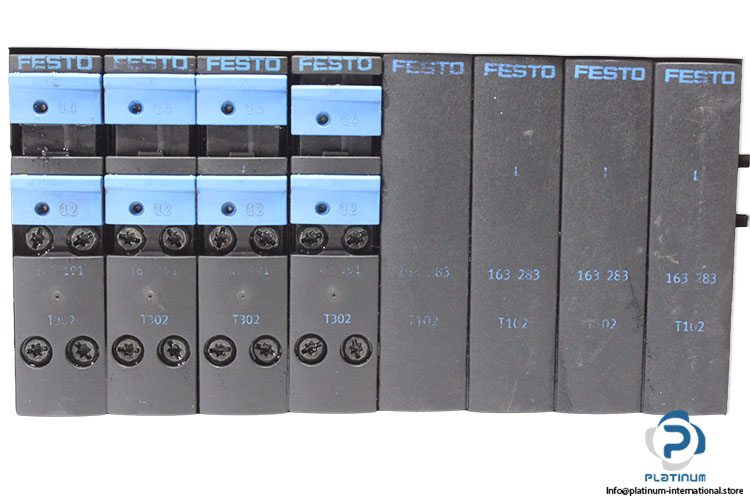

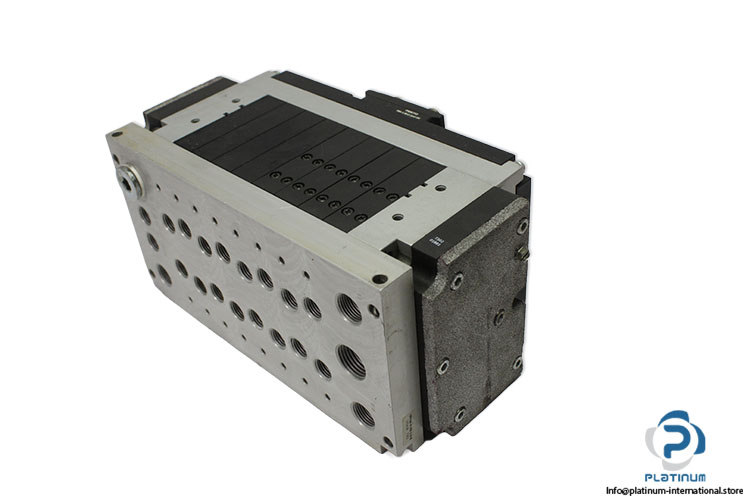

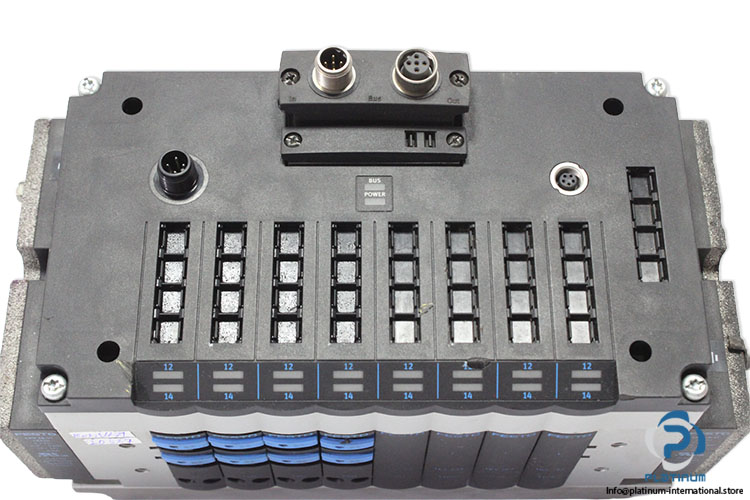

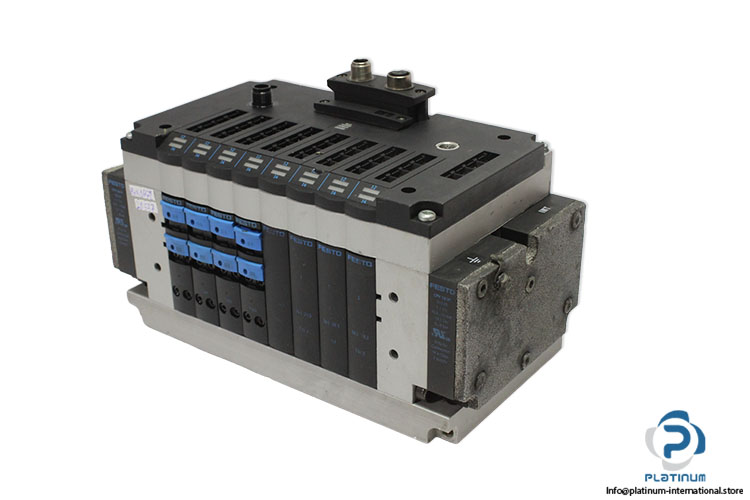

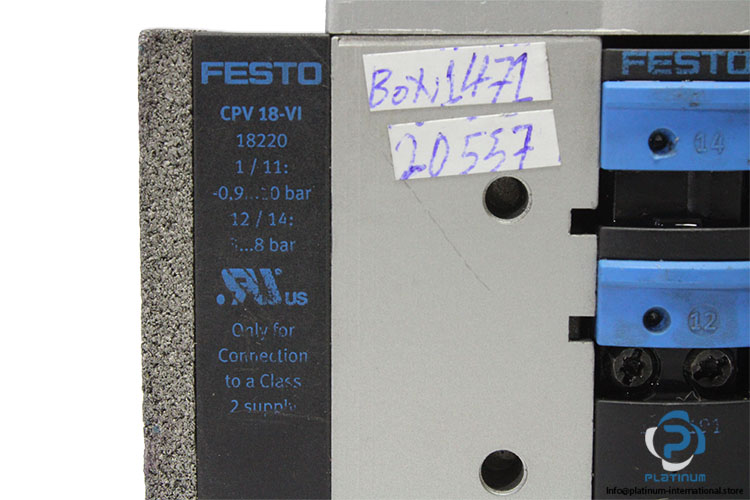

Festo CPV-18-VI 8-WAY Valve Terminal
Used
In stock1 unitReady to ship
8-Way Valve Terminal The FESTO CPV-18-VI is an electrically actuated 8-way pneumatic valve terminal with 1600 l/min flow rate and IP65 protection for industrial automation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 18220 |
| Medium | Compressed Air |
| Actuation | Electrically |
| Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Pilot Pressure | 3 ... 8 bar |
| Flow Rate | 1600 l/min at 18 mm |
| Protection Class | IP65 |
| Temperature | -5 … 50 °C |
| Port Size | G1/2 & G1/4 & G1/8 |
| Attachment 1 | FESTO 163191 SOLENOID VALVE |
| Solenoid Valve Manufacturer | FESTO |
| Attachment 1 Type | Solenoid Valve |
| Solenoid Valve Model | CPV18-M1H-5JS-1/4 |
| Solenoid Valve Part No. | 163191 |
| Solenoid Valve Medium | Compressed Air |
| Solenoid Valve Size | 18 mm |
| Solenoid Valve Design | Piston Gate Valve |
| Solenoid Valve Function | 5/2-Way, Double Solenoid |
| Solenoid Valve Actuation | Electrically |
| Solenoid Valve Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Solenoid Valve Pilot Pressure | 2 ... 8 bar |
| Solenoid Valve Flow Rate | 1600 l/min |
| Solenoid Valve Operating Voltage | 24 V DC |
| Solenoid Valve Power Consumption | 1.5 W |
| Solenoid Valve Port Size | G1/4 |
| Solenoid Valve Material | Die-Cast Aluminium |
| Solenoid Valve Protection Class | IP65 |
| Solenoid Valve Temperature | -5 … 50 °C |
| Attachment 2 | FESTO 163283 BLANKING PLATE |
| Blanking Plate Manufacturer | FESTO |
| Attachment 2 Type | Blanking Plate |
| Blanking Plate Model | CPV18-RZP |
| Blanking Plate Part No. | 163283 |
| Attachment 3 | FESTO 175638 MULTI-PIN |
| Multi Pin Manufacturer | FESTO |
| Attachment 3 Type | Multi-Pin |

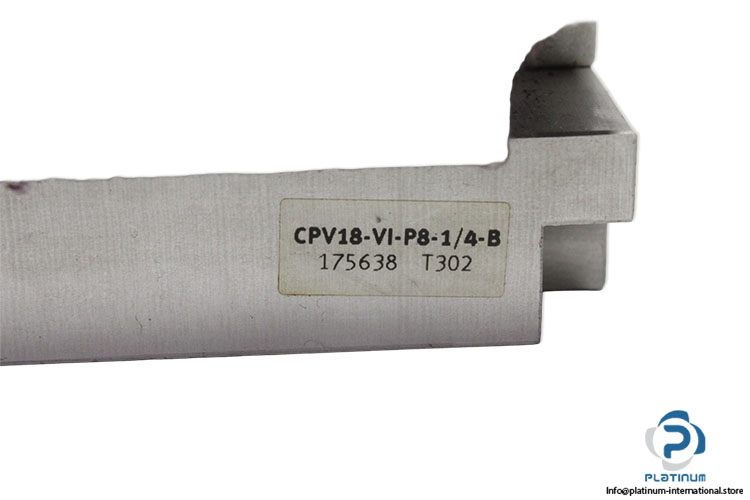

| Multi Pin Model | CPV18-VI-P8-1/4-B |
| Multi Pin Part No. | 175638 |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1103119 |
| Weight | 4,91 |
