Festo DC-50-0090PPV ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Festo DC-50-0090PPV ISO Cylinder features a 50 mm bore, 90 mm stroke, and double-acting motion. Built for industrial use, it operates with compressed air and offers reliable performance.1/4125090ActingActuatorAirAutomationbarboreCircularCompressedconnectionCylinderDC-50-0090PPVdiameterDoubleFestoGIndustrialISOmmPneumaticPressureRODShapeStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

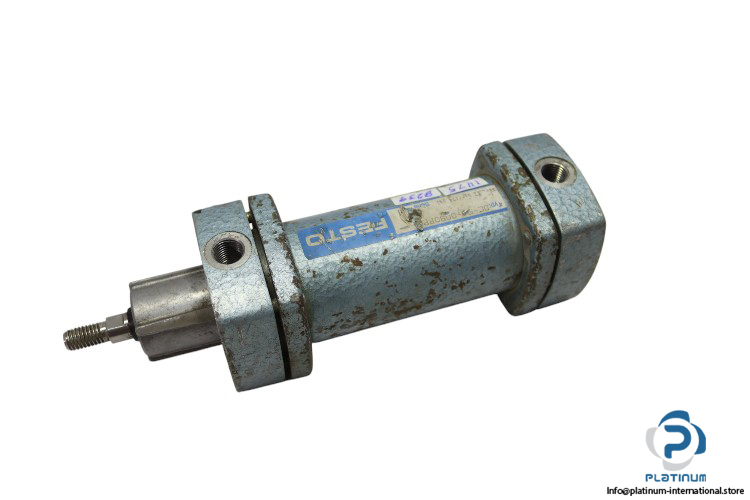

Festo DC-50-0090 PPV ISO Cylinder
The Festo DC500090PPV ISO Cylinder is a robust pneumatic actuator designed for high-performance industrial applications. With a double-acting operation mode and a circular shape, it offers efficient linear motion using compressed air.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DC-50-0090PPV
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 90 mm |
| Bore x Stroke | 50 x 90 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 70 x 210 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Circular |
| Rod Direction | One Side |
