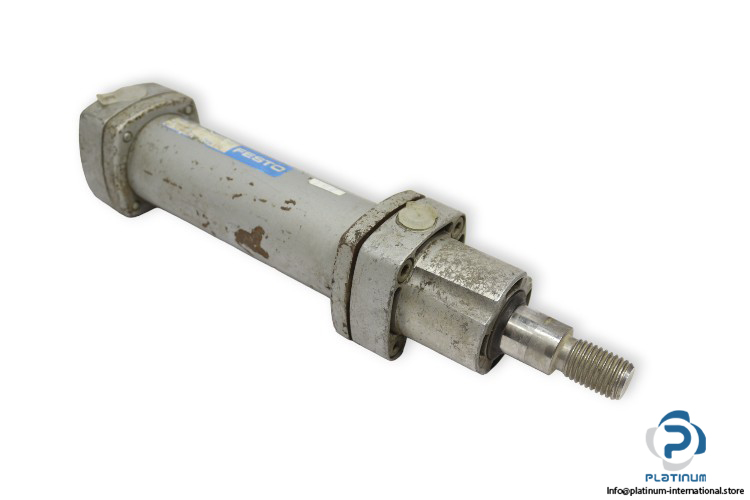

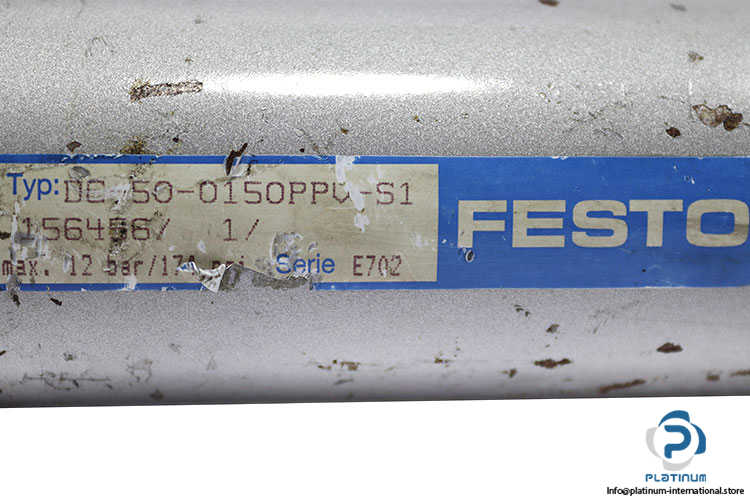

Festo DC-50-0150PPV-S1 ISO Cylinder

Manufacturer: Festo
Type: ISO Cylinder
Model: DC500150PPVS1
Part. No: 156456


Media: Compressed Air
Stroke (mm): 150
Bore diameter (mm): 50
BorexStroke (mm): 50×150
Rod Diameter (mm): 25
Fram Dimensions (mm): 275×70
Maximum pressure (bar): 12
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
