Festo DC-50-50 PPV ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Festo DC-50-50 PPV ISO Cylinder features a 50 x 50 mm bore and stroke, G 1/4 pneumatic connection, and a durable double-acting design for precise motion control.1/450ActingActuatorAirAutomationboreCircularCompressedconnectionCylinderDC-50-50DoubleEndFestoGIndustrialISOmalemmPneumaticPPVRODShapeStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

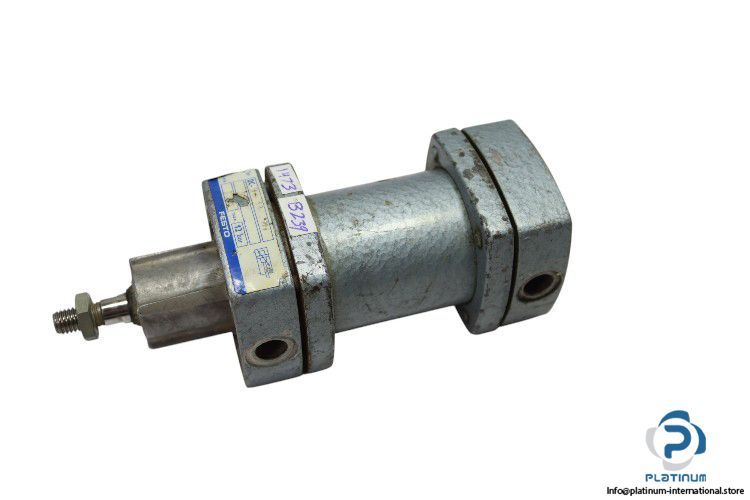

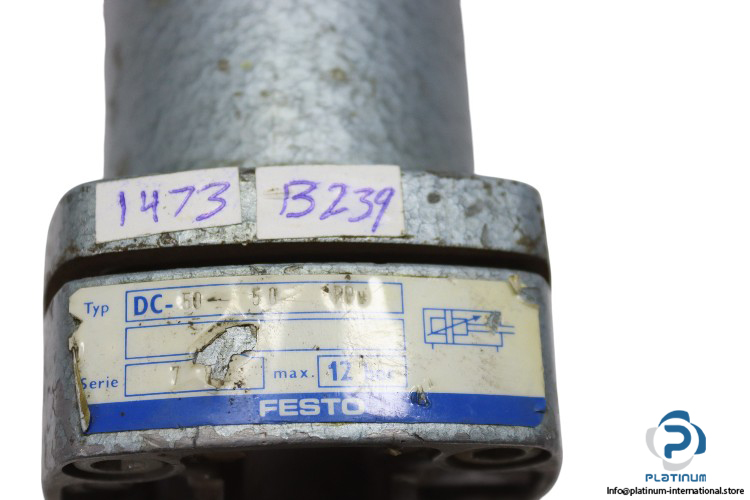

Festo DC-50-50PPV ISO Cylinder
The Festo DC5050PPV ISO Cylinder is a robust pneumatic actuator designed for reliable performance in industrial applications. With a 50 mm bore, 50 mm stroke, and durable construction, it offers efficient and consistent motion control using compressed air.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DC-50-50 PPV
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 50 mm |
| Bore x Stroke | 50 x 50 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 70 x 165 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Circular |
| Rod Direction | One Side |
