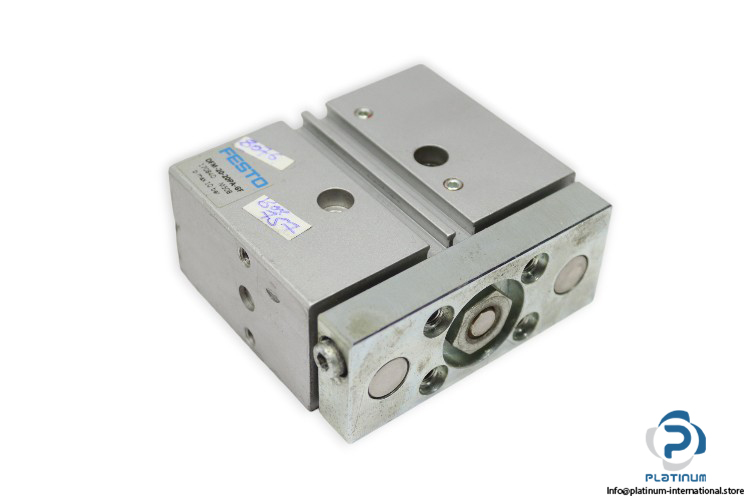

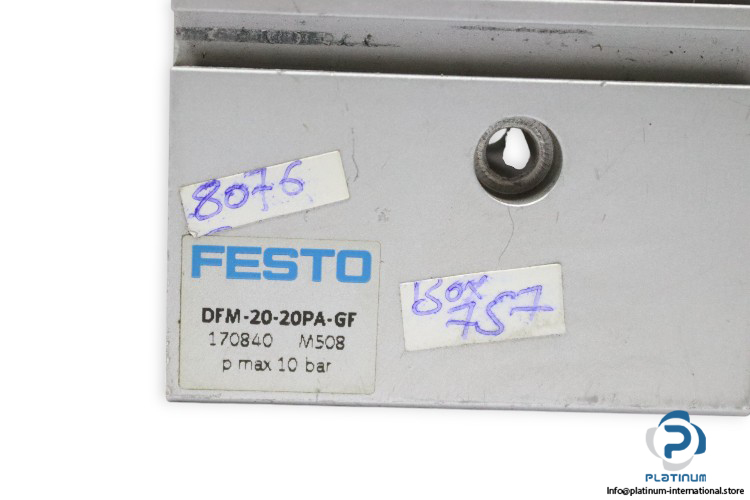

Festo DFM-20-20PA-GF Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder
Model: DFM-20-20PA-GF
Part no.: 170840

Stroke Length: 20 mm
Piston Diameter: 20 mm
Distance from centre of gravity of load to yoke plate xs: 50 mm
Cushioning: Elastic cushioning rings/plates at both ends
Mounting position: optional
Guide: Plain-bearing guide
Design: Guidance
Position detection: Via proximity switch
Operating pressure: 2 bar … 10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air
Temperature: -20 … 80 °C
Pneumatic connection: M5
