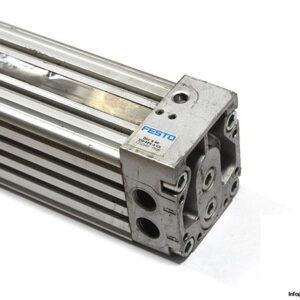

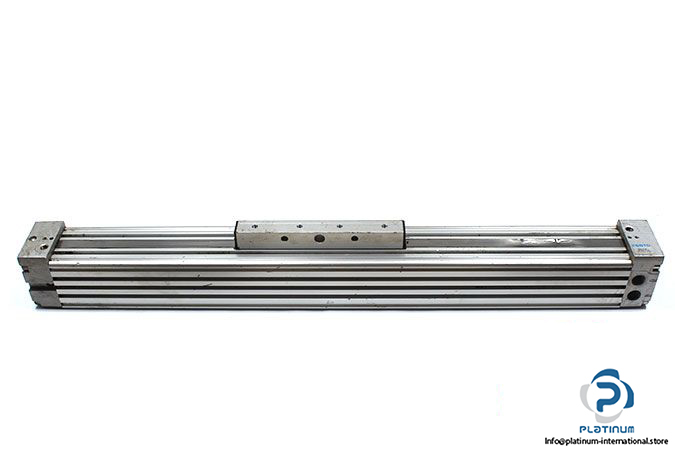

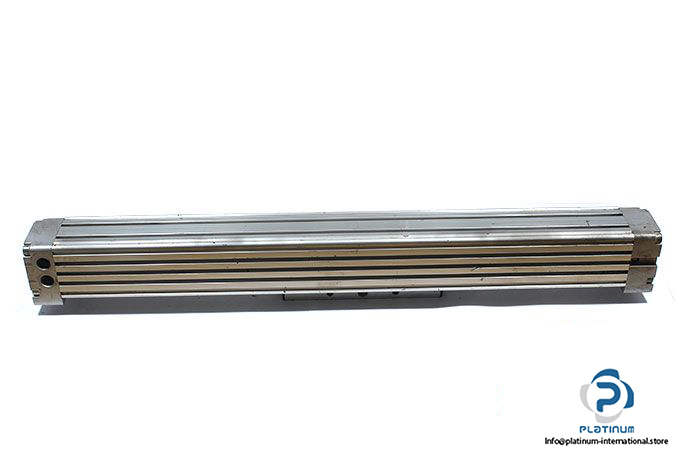

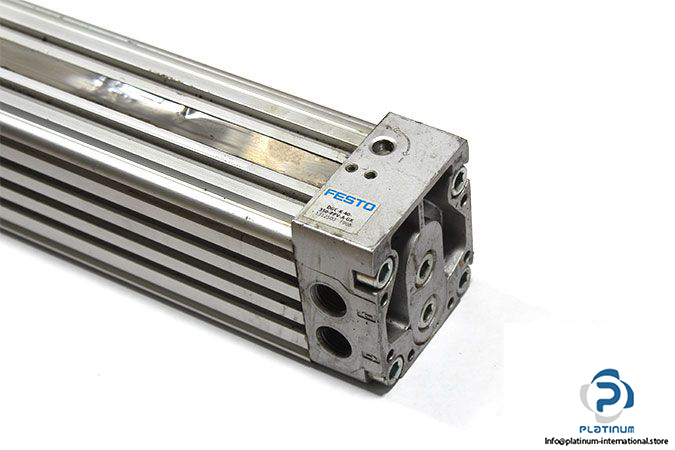

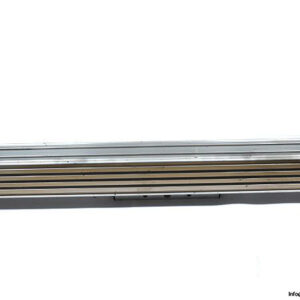

Festo DGC-40-350-PPV-A-GK Linear Actuator
Manufacturer: FESTO
Type: Linear Actuator

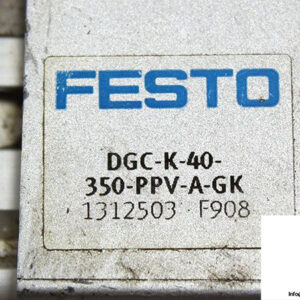

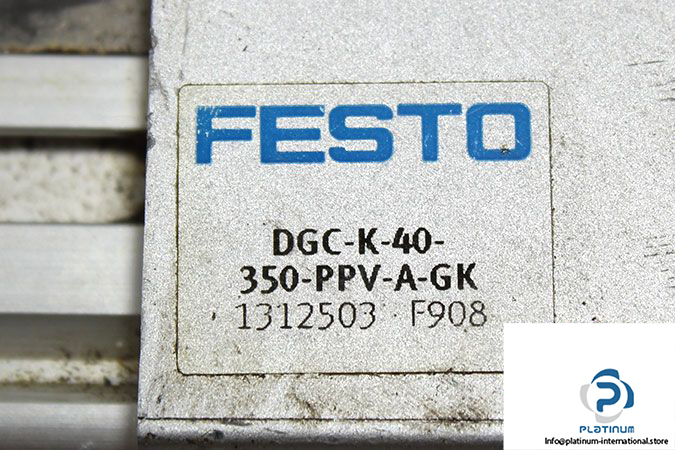

Model: DGC-40-350-PPV-A-GK
Part No: 1312503
Materials
- Cover: Die-Cast Aluminum
- Seals: NBR TPE-U(PU)
Piston Diameter: 40 mm
Cushioning: Adjustable at Both Ends
Stroke: 350 mm
Cushioning Length: 30 mm
Operating Pressure: 2…8 bar
Theoretical Force At 6 Bar, Retracting: 754 N
Theoretical Force At 6 Bar, Advancing: 754 N
Ambient Temperature: -10…60 °C
Pneumatic Connection: G1/8
Constructional Design: Pneumatic Linear Drive with Slide
Mode of Operation: Double-Acting
Guide: Recirculating Ball Bearing Guide
Position Sensing: For Proximity Sensor
Magnet: with Magnet
Type of Mounting: with Accessories
Weight: 4.2 kg
