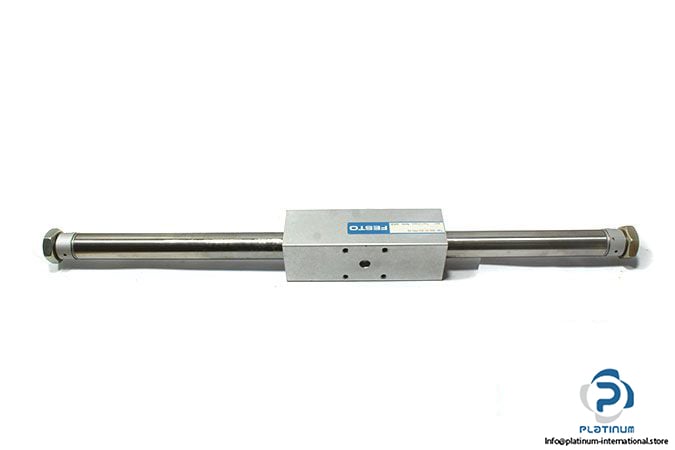

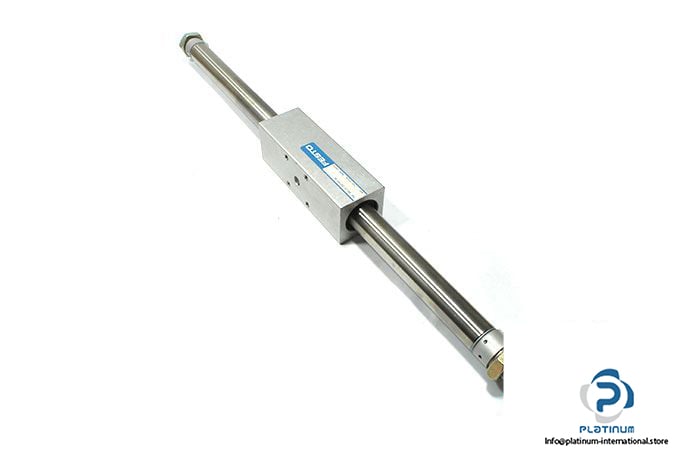

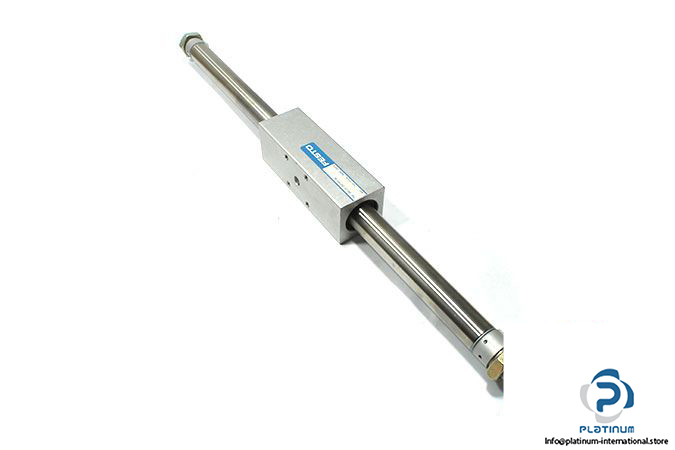

Festo DGO-25-350-PPV-AB Double Acting Cylinder
Manufacturer: Festo
Type: Double Acting Cylinder

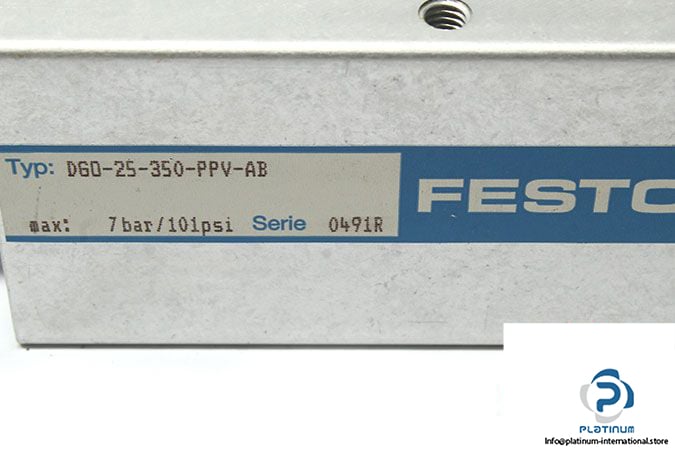

Model: DGO-25-350-PPV-AB
Material
Bearing and end Cap: Aluminum
Housing: High-alloy steel
Cover material: Aluminum
Mode of operation: Double-acting
Piston Diameter: 25 mm
Stroke length: 350 mm
Max. Operating Pressure: 7 bar
Theoretical force at 6 bar, retracting: 295 N
Theoretical force at 6 bar, advancing: 295 N
Medium: Air
Connection: G1/8
Temperature: -20 … 60 °C
Weight: 1.57 kg
