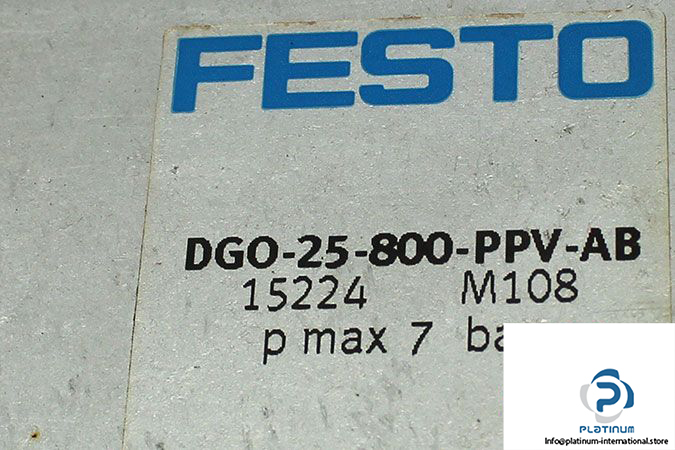

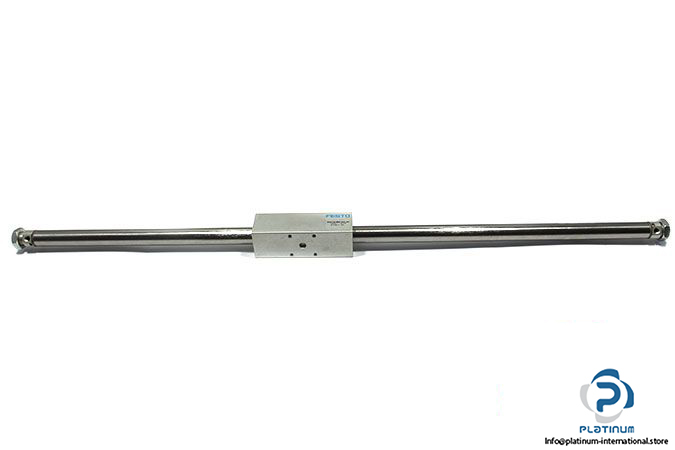

Festo DGO-25-800-PPV-AB Linear Actuator

Manufacturer: Festo

Type: Linear Actuator

Model: DGO-25-800-PPV-AB

Part No: 15224

Materials

• Cover: Aluminum
• Seals: NBR TPE-U(PU)
• Housing: High-Alloy Steel

Piston Diameter: 25 mm

Cushioning: Pneumatic Cushioning, Adjustable at Both Ends

Stroke: 800 mm

Cushioning Length: 19 mm

Operating Pressure: 1.5…7 bar

Theoretical Force At 6 Bar, Retracting: 295 N

Theoretical Force At 6 Bar, Advancing: 295 N

Ambient Temperature: -20…60 °C

Pneumatic Connection: G1/8

Mode of Operation: Double-Acting

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 1.755 kg
