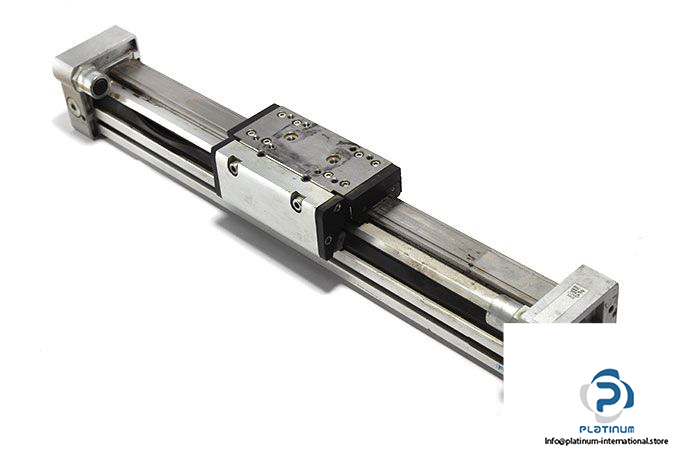

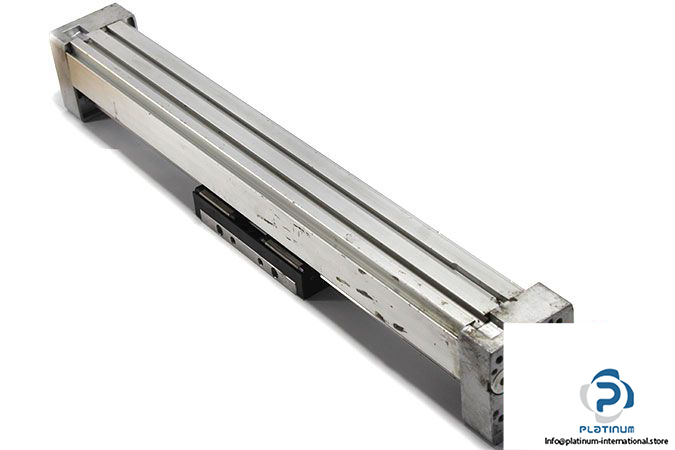

Festo DGPL-25-260-PPV-A Linear Actuator

Manufacturer: FESTO

Type: Linear Actuator

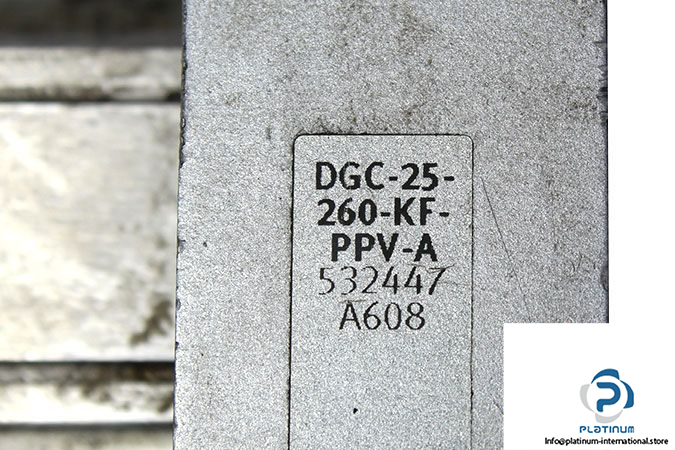

Model: DGC-25-260-PPV-A

Part No: 532447

Materials

• Cover: Wrought Aluminum Alloy
• Seals: NBR TPE-U(PU)

Piston Diameter: 25 mm

Cushioning: Adjustable at Both Ends

Stroke: 260 mm

Cushioning Length: 15.5 mm

Operating Pressure: 2…8 bar

Theoretical Force At 6 Bar, Retracting: 295 N

Theoretical Force At 6 Bar, Advancing: 295 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G1/8

Constructional Design: Pneumatic Linear Drive with Slide

Mode of Operation: Double-Acting

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 3.280 kg
