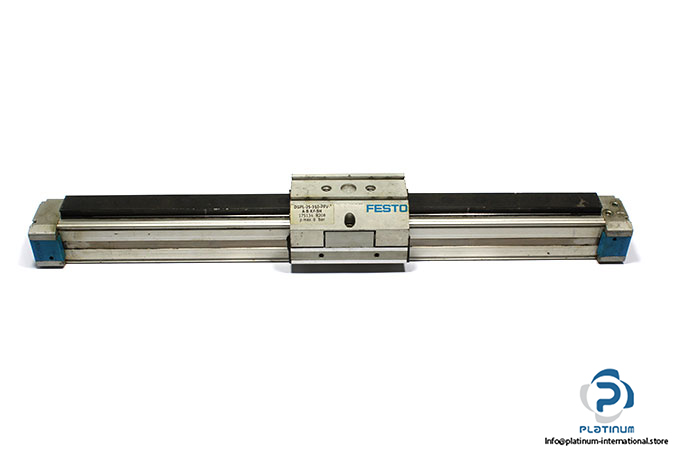

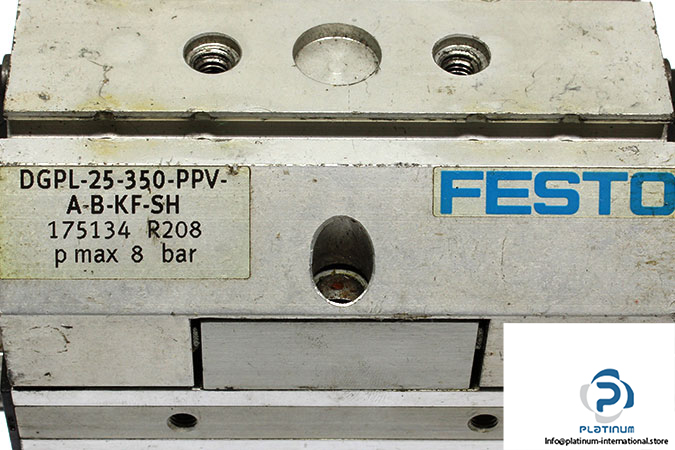

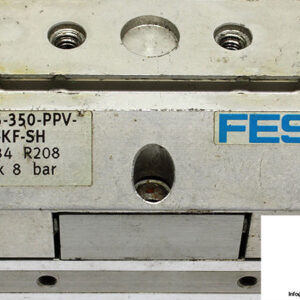

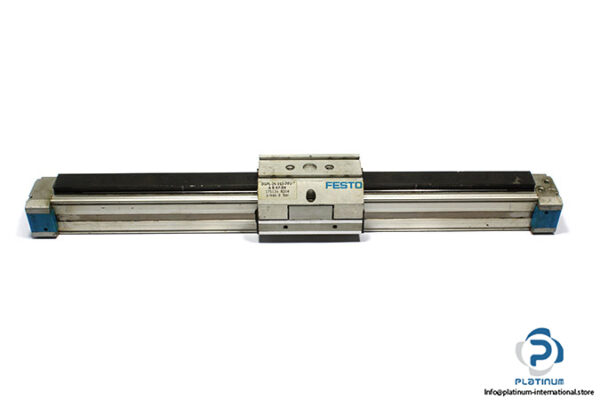

Festo DGPL-25-350-PPV-A-B-KF-SH Linear Actuator

Manufacturer: Festo

Type: Linear Actuator

Model: DGPL-25-350-PPV-A-B-KF-SH

Part No: 175134

Piston Diameter: 25 mm

Cushioning: Adjustable at Both Ends

Stroke: 350 mm

Cushioning Length: 18 mm

Operating Pressure: 2…8 bar

Theoretical Force At 6 Bar, Retracting: 295 N

Theoretical Force At 6 Bar, Advancing: 295 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G1/8”

Mode of Operation: Double-Acting

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Material: Aluminum

Protection Class: IP65
