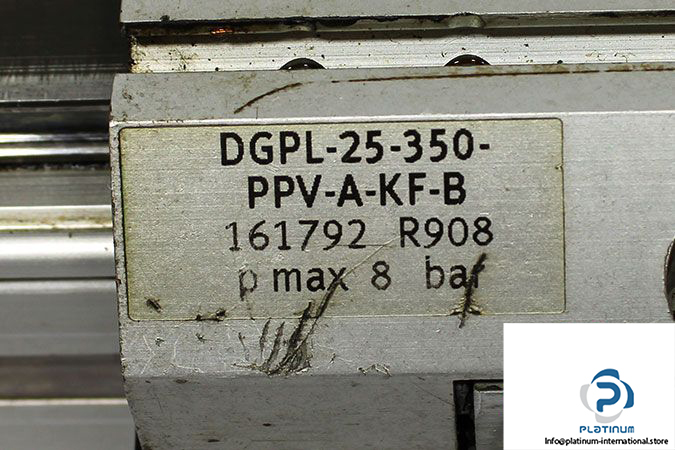

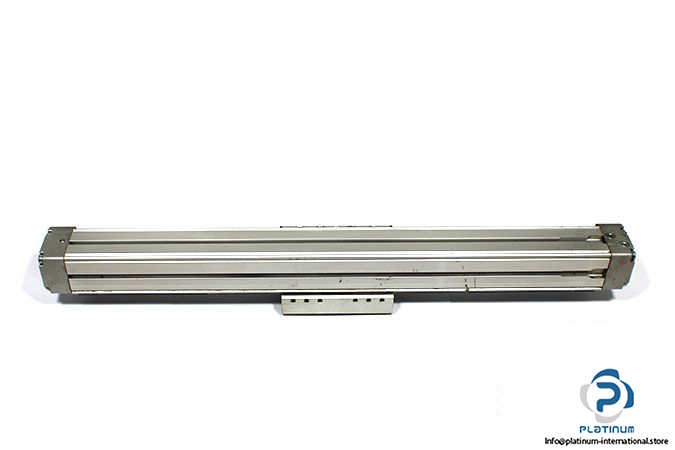

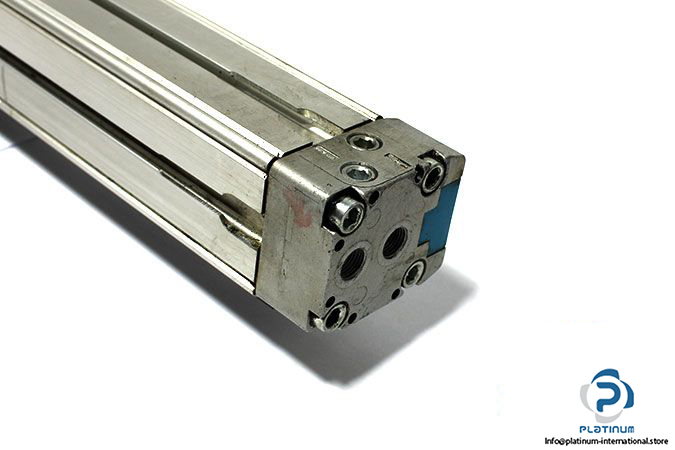

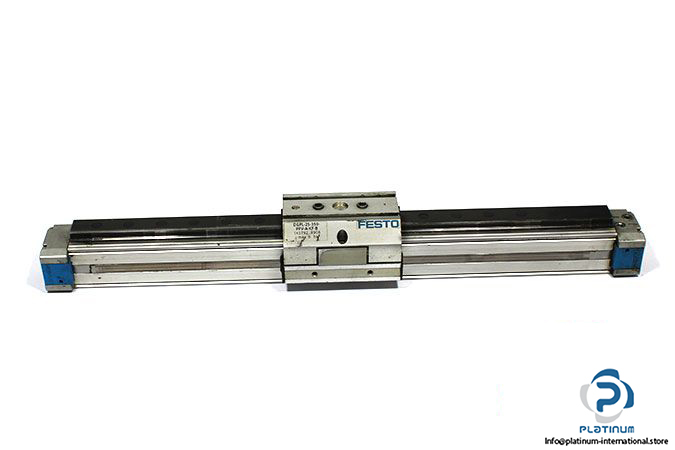

Festo DGPL-25-350-PPV-A-KF-B Linear Actuator

Manufacturer: Festo

Type: Linear Actuator

Model: DGPL-25-350-PPVA-KFB

Part No: 161792

Piston Diameter: 25 mm

Stroke: 350 mm

Cushioning Length: 30 mm

Operating Pressure: 2…8 bar

Theoretical Force At 6 Bar, Retracting: 295 N

Theoretical Force At 6 Bar, Advancing: 295 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G1/8”

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Materials: Cast Aluminum

Weight: 3.33 kg
