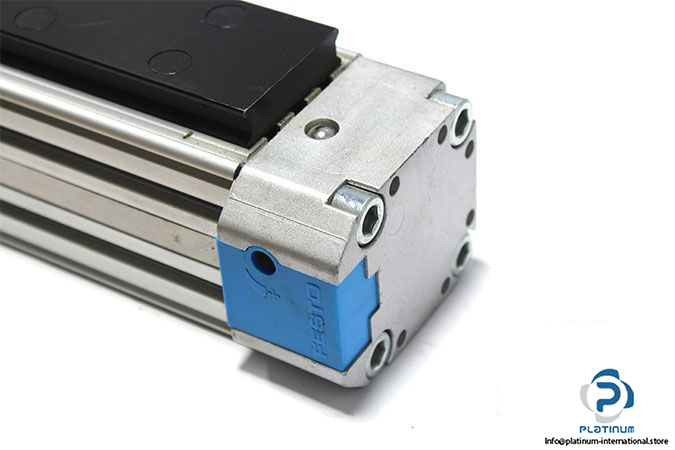

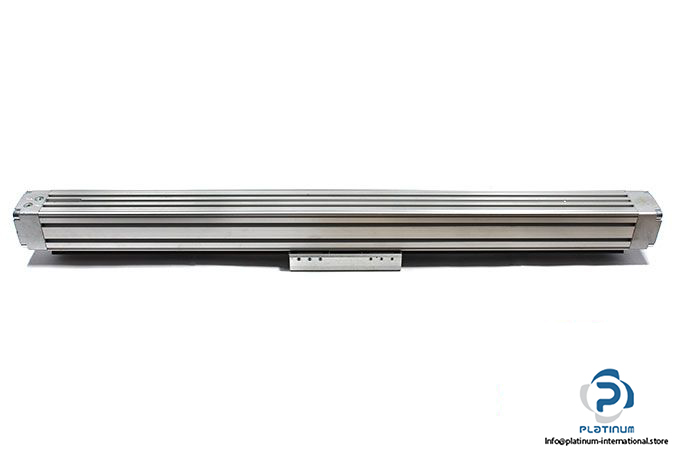

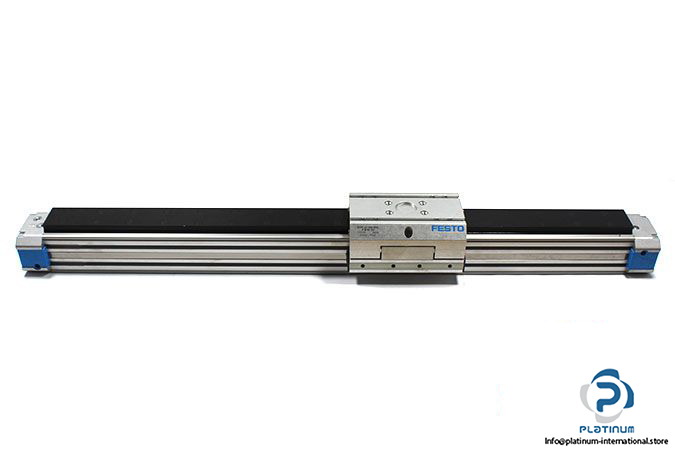

Festo DGPL-32-500-PPV-A-B-KF-SV Linear Actuator

Name: FESTO DGPL-32-500-PPV-A-B-KF-SV LINEAR ACTUATOR
SKU: 971023
Availability: LimitedAvailability

festo-dgpl-32-500-ppv-a-b-kf-sv-linear-actuator-1

festo-dgpl-32-500-ppv-a-b-kf-sv-linear-actuator-2

festo-dgpl-32-500-ppv-a-b-kf-sv-linear-actuator-3

festo-dgpl-32-500-ppv-a-b-kf-sv-linear-actuator-4

New

Available on request

SKU

971023

Category

Pneumatic Actuators

Condition

New

32x500 Actuator CD08 Cylinder Drives Festo Linear Pneumatic Rodless

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FESTO

Type: Linear Actuator

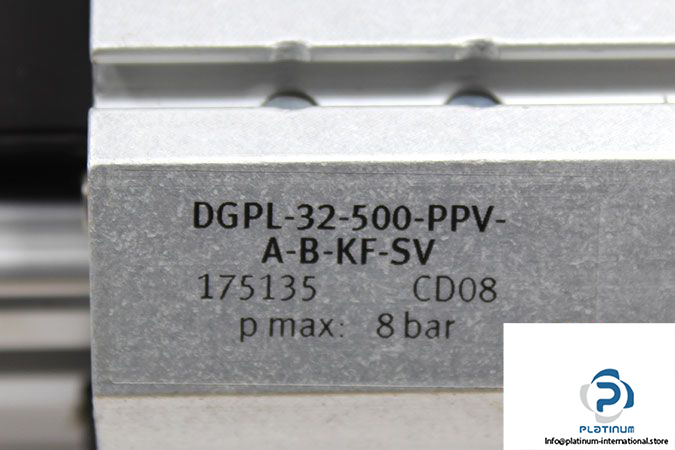

Model: DGPL-32-500-PPV-A-B-KF-SV

Part No: 175135

Materials

Cover: Coasted Cast Aluminum

Seals: NBR TPE-U(PU)

Piston Diameter: 32 mm

Cushioning: Adjustable at Both Ends

Stroke: 500 mm

Cushioning Length: 20 mm

Operating Pressure: 2…8 bar

Theoretical Force At 6 Bar, Retracting: 483 N

Theoretical Force At 6 Bar, Advancing: 483 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G1/8

Constructional Design: Pneumatic Linear Drive with Slide

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 7.08 kg
