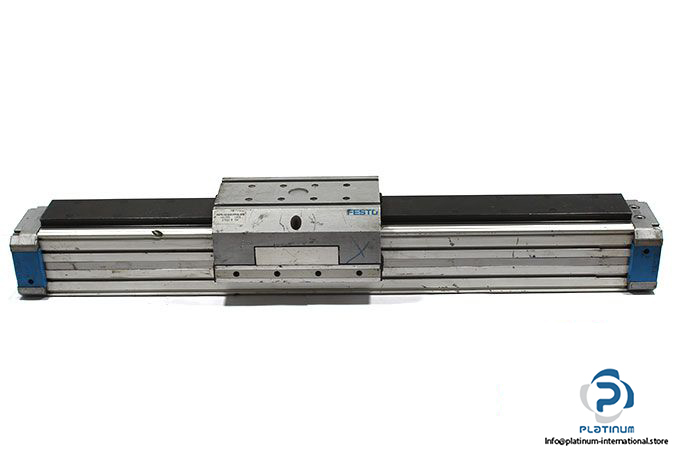

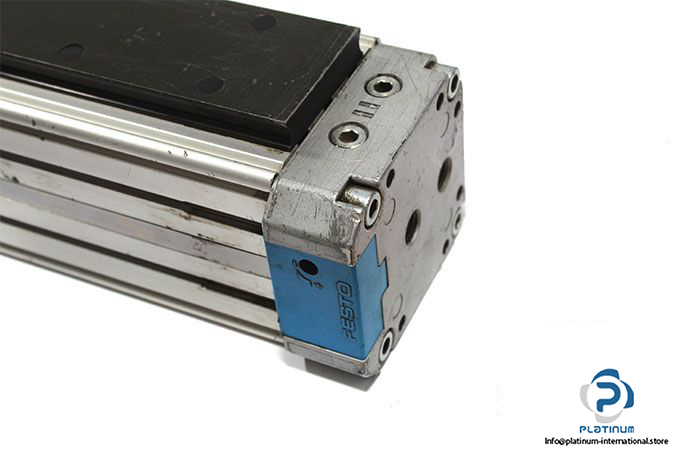

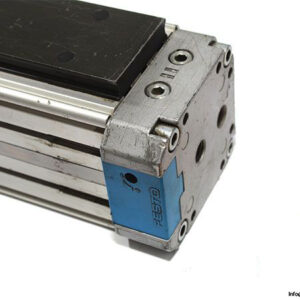

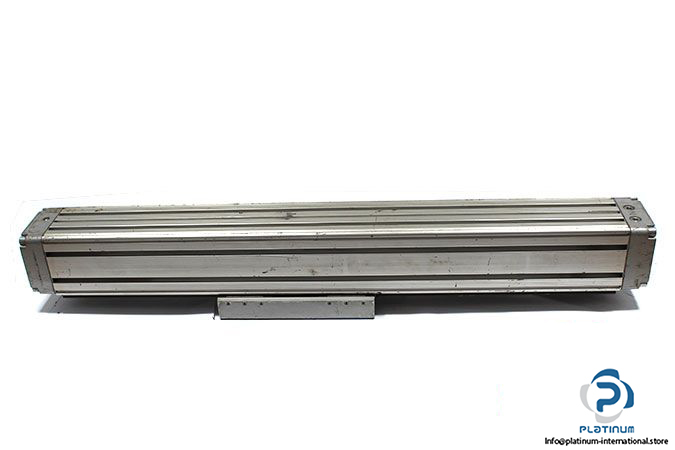

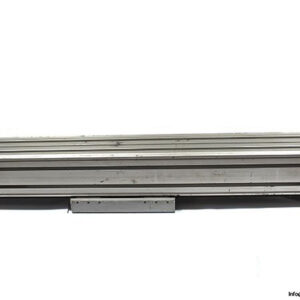

Festo DGPL-50-450-PPV-A-KF-B Linear Actuator

Manufacturer: FESTO

Type: Linear Actuator

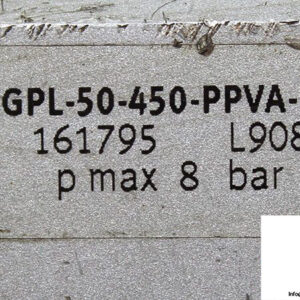

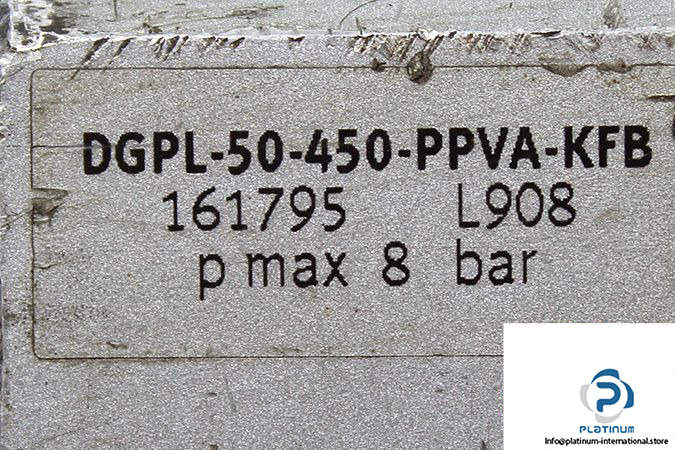

Model: DGPL-50-450-PPVA-KFB

Part No: 161795

Materials

• Cover: Coated Cast Aluminum
• Seals: NBR TPE-U(PU)
• Housing: Aluminum Anodized

Piston Diameter: 50 mm

Cushioning: Adjustable at Both Ends

Stroke: 450 mm

Cushioning Length: 30 mm

Operating Pressure: 1.5…8 bar

Theoretical Force At 6 Bar, Retracting: 1178 N

Theoretical Force At 6 Bar, Advancing: 1178 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G1/4

Constructional Design: Pneumatic Linear Drive with Slide

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 17.700 kg
