Festo DGS-25-80PPV Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
The Festo DGS-25-80 PPV is a double-acting round cylinder with a 25 mm bore and 80 mm stroke. It features adjustable cushioning, a single-ended piston rod, and supports up to 12 bar operating pressure.2580ActingActuatorAdjustableboreCircularCushioningCylinderDGS-25-80DoubleFestoG1/8mmPneumaticPPVRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

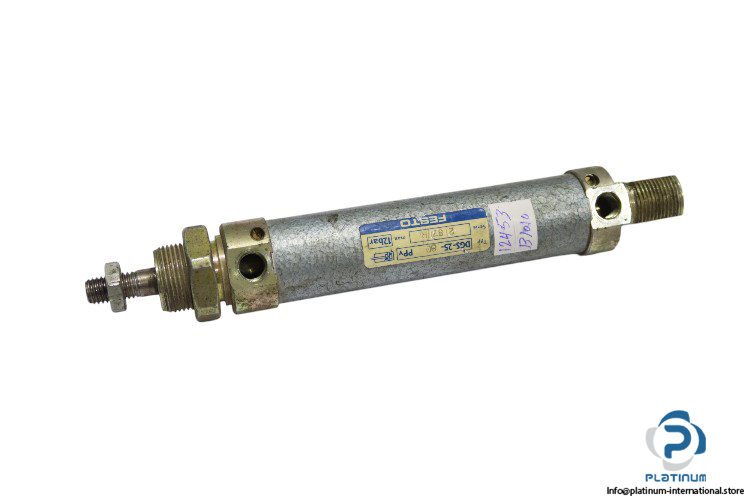

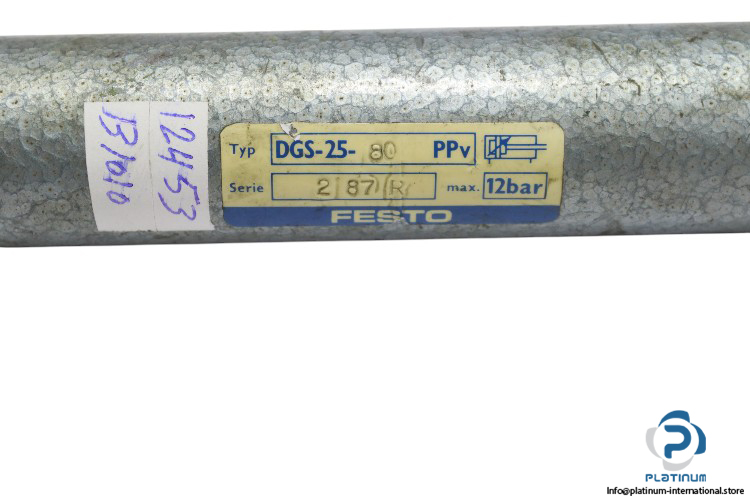

Festo DGS-25-80 PPV “ Round Cylinder
The Festo DGS-25-80 PPV is a high-performance round cylinder featuring double-acting operation and adjustable pneumatic cushioning. Designed with a circular profile and single-ended piston rod, it delivers reliable motion control in compressed air systems.
Manufacturer: Festo
Type: Round Cylinder
Model: DGS-25-80 PPV
| Bore Diameter | 25 mm |
| Stroke | 80 mm |
| Cushioning | Pneumatic cushioning adjustable at both ends |
| Variants | Single-ended piston rod |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double-acting |
| Shape | Circular |
| Max. Operating Pressure | 12 bar |
| Ambient Temperature | -20 to 80 °C |
