Festo DN-63-25 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DN-63-25 is designed for compressed air media with a 63 mm bore and 25 mm stroke. Features include a square shape, male piston rod end, and maximum pressure of 12 bar.123/8AirbarCompressedconnectionCylinderDN-63-25DoubleEndFestoGIndustrialISOmaleModeOperationPistonPneumaticPressureRODShapeSquare
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

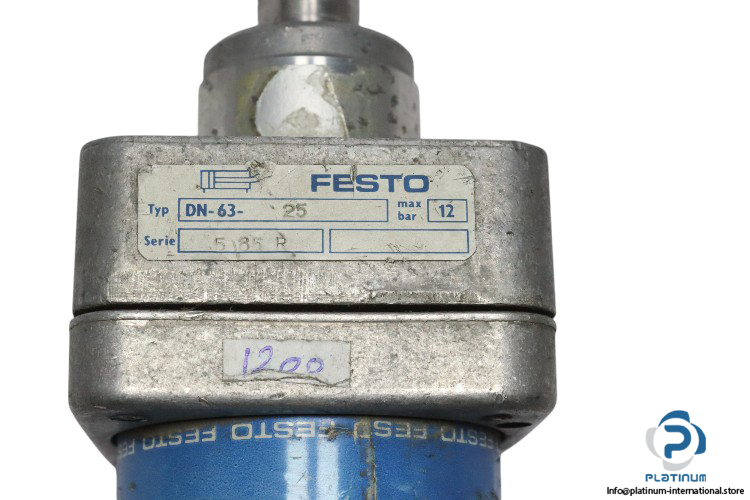

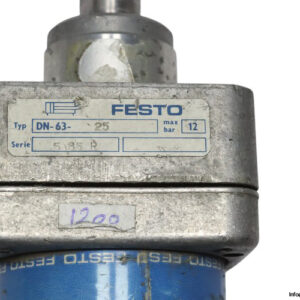

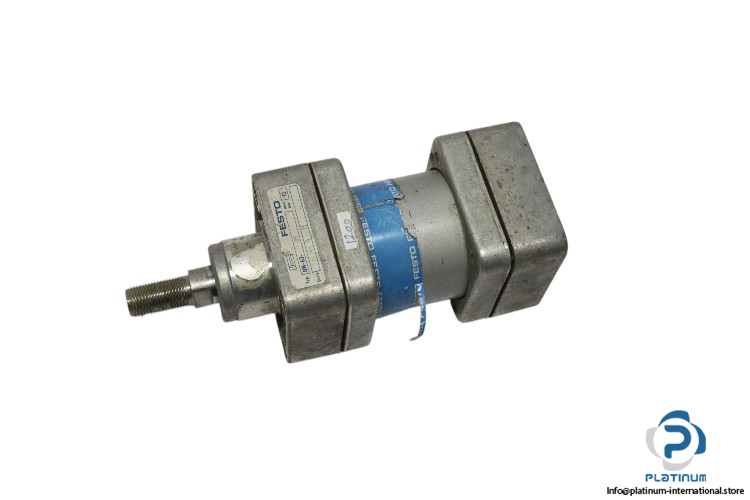

FESTO ISO Cylinder DN-63-25
The FESTO ISO Cylinder DN6325 is designed for reliable pneumatic performance, featuring a 63 mm bore diameter and a 25 mm stroke. This cylinder is perfect for applications requiring high pressure and compressed air media, offering durable performance and easy installation with its square shape and male piston rod end.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DN-63-25
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 25 mm
- Bore x Stroke: 63 x 25 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 80 x 180 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
