Festo DNC-125-700-PPV-A ISO Cylinder
New
In stock2 unitsReady to ship
ISO Cylinder
Festo DNC-125-700-PPV-A double-acting ISO cylinder with 700 mm stroke, 125 mm piston diameter, adjustable pneumatic cushioning, and 10 bar maximum operating pressure. Ideal for long-stroke automation systems and heavy-duty pneumatic applications.125mm700mmActingActuatorAirCylinderDNCDNC-125-700-PPV-ADoubleDutyFestoHeavyIndustrialISOPistonPneumaticStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

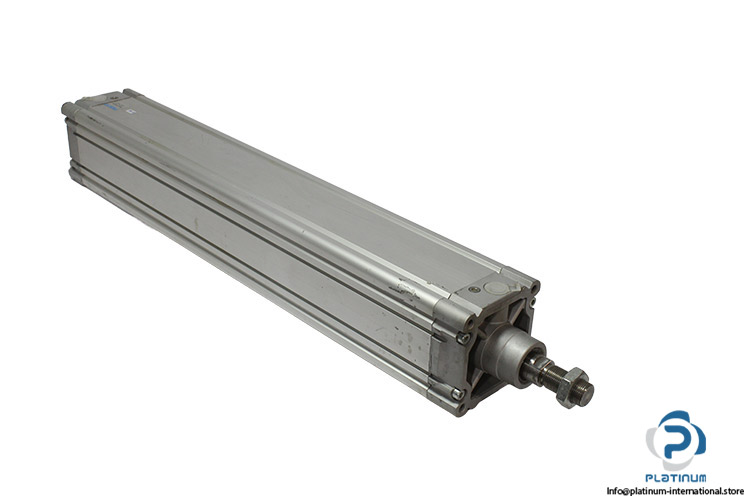

Festo DNC-125-700-PPV-A ISO Cylinder
The Festo DNC-125-700-PPV-A is a high-performance ISO standard pneumatic cylinder designed for demanding industrial automation applications requiring long stroke length and high force output.
Manufacturer: Festo
Type: ISO Cylinder

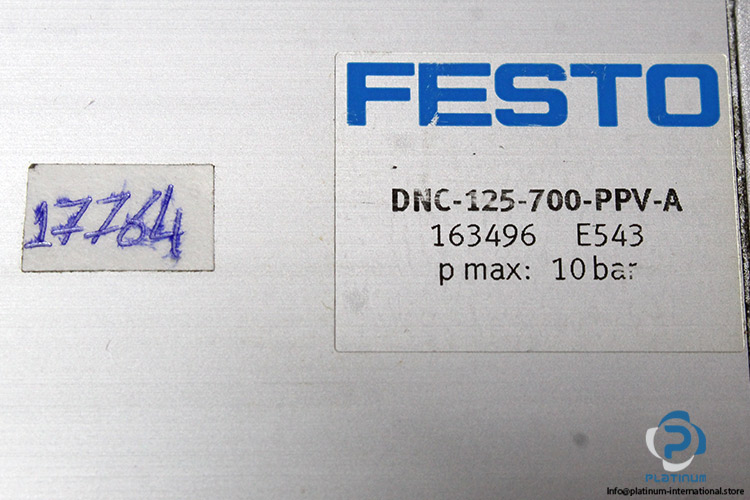

Model: DNC-125-700-PPV-A
Part No.: 163496
Code: E543
Recommended for heavy-duty automation systems, material handling equipment, and industrial machinery requiring long-stroke pneumatic actuation.
Please contact us via Ask for assistance with any inquiries.
| Operating Medium | Compressed Air |
| Stroke Length | 700 mm |
| Piston Diameter | 125 mm |
| Piston Rod Thread | M27 × 2 |
| Rod Diameter | 32 mm |
| Frame Dimension | 133 × 857 mm |
| Cushioning | Pneumatic Cushioning, Adjustable At Both Ends |
| Piston Rod End | Male Thread |
| Position Detection | Via Proximity Switch |
| Variants | Piston Rod At One End |
| Maximum Operating Pressure | 10 bar |
| Mode Of Operation | Double Acting |
| Pneumatic Connection | G 1/2 |
| Ambient Temperature | -20 °C to +80 °C |
| Material Cover | Die-Cast Aluminum, Coated |
| Material Seals | TPE-U (PU) |
| Material Piston Rod | High-Alloy Steel |
| Material Cylinder Barrel | Wrought Aluminum Alloy, Smooth Anodized |
