Festo DNC-32-950-PPV-A ISO Cylinder
Used
In stock3 unitsReady to ship
ISO Cylinder
FESTO ISO Cylinder DNC-32-950-PPV-A features a 32 mm bore diameter, 950 mm stroke, and operates with compressed air. It is designed with a male piston rod end and is ideal for industrial pneumatic applications requiring high pressure and efficient operation.32950AirboreComponentsCompressedCylinderdiameterDNC-32-950-PPV-ADoubleEndFestoIndustrialISOmalemmOperationPistonPneumaticRODStrokeSystems
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

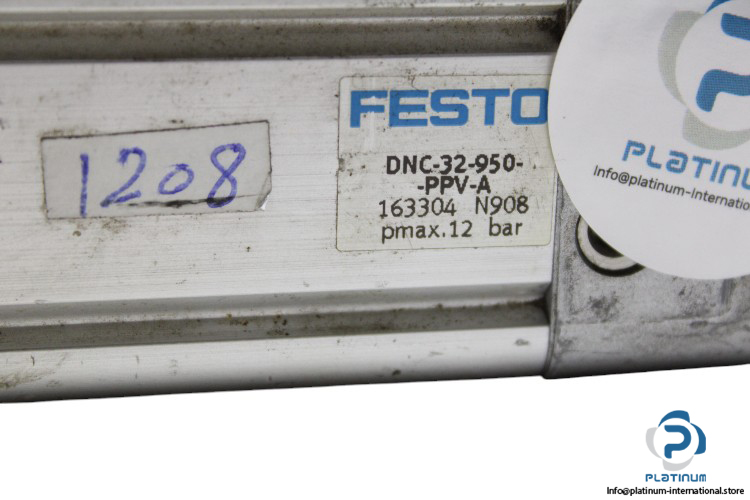

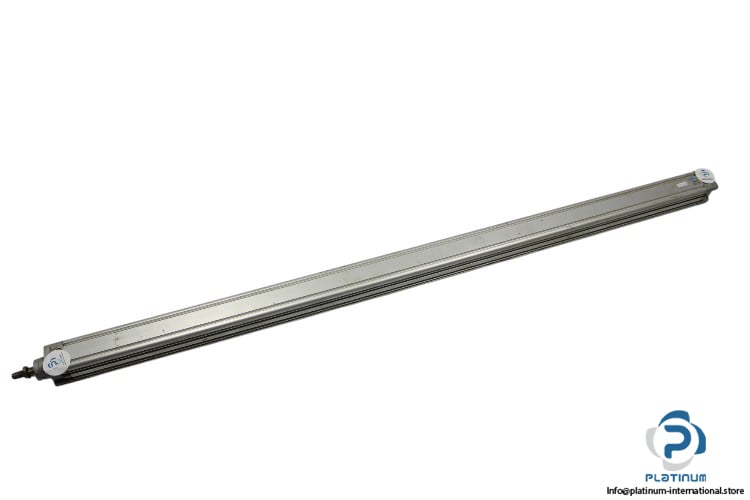

FESTO ISO Cylinder DNC-32-950-PPV-A
The FESTO ISO Cylinder DNC32950PPVA is designed for use in various industrial applications. Featuring a durable design and reliable operation, this cylinder is ideal for pneumatic systems that require high performance and efficiency. It is operated with compressed air and designed for double operation mode with a male piston rod end.
Manufacturer: FESTO
Model: DNC-32-950-PPV-A
Part No.: 163304
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 32 mm
- Stroke: 950 mm
- Bore x Stroke: 32 x 950 mm
- Rod Diameter: 12 mm
- Frame Dimensions: 45 x 1070 mm
- Pneumatic Connection: G 1/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
