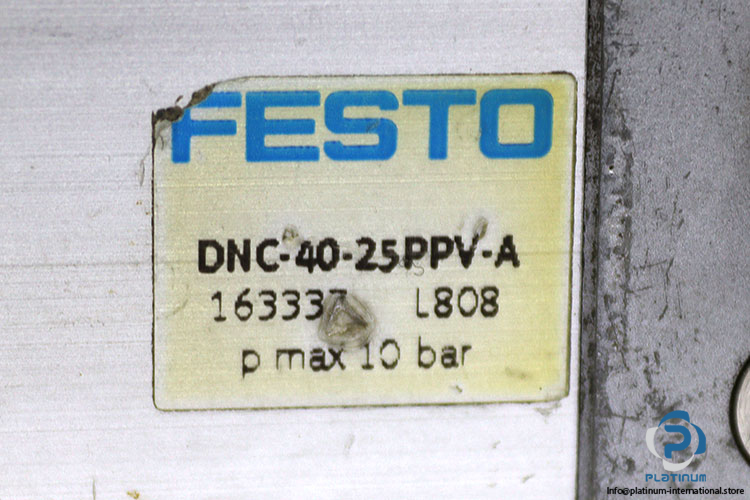

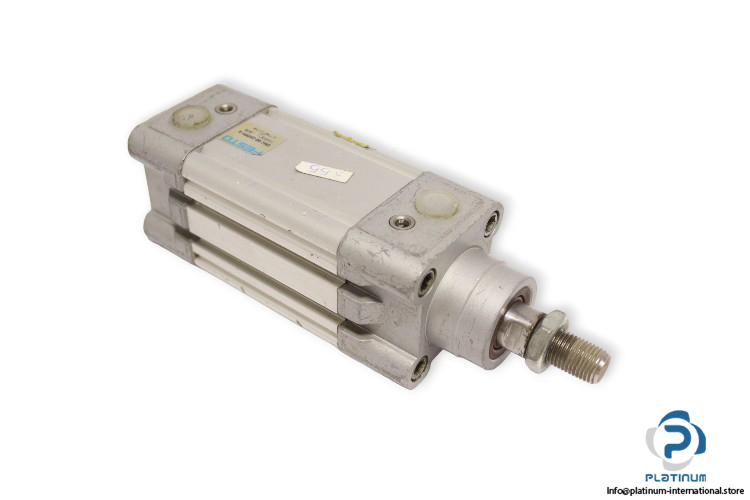

Festo DNC-40-25PPV-A ISO Cylinder

Manufacturer: Festo
Type: ISO Cylinder
Model: DNC4025PPVA
Part. No: 163337


Media: Compressed Air
Stroke (mm): 25
Bore diameter (mm): 40
BorexStroke (mm): 40×25
Rod diameter (mm): 16
Fram Dimensions (mm): 156×54
Maximum pressure (bar): 10
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
