Festo DNC-63-115-PPV-A ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DNC-63-115-PPV-A designed for pneumatic applications, featuring a 63 mm bore diameter, 115 mm stroke, and a max pressure of 12 bar. It comes with a male piston rod end and square shape for easy integration and efficient operation.3/863boreComponentsconnectionCylinderDNC-63-115-PPV-ADoubleEndFestoGIndustrialISOmalemmOperationpartsPistonPneumaticRODShapeSquareSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

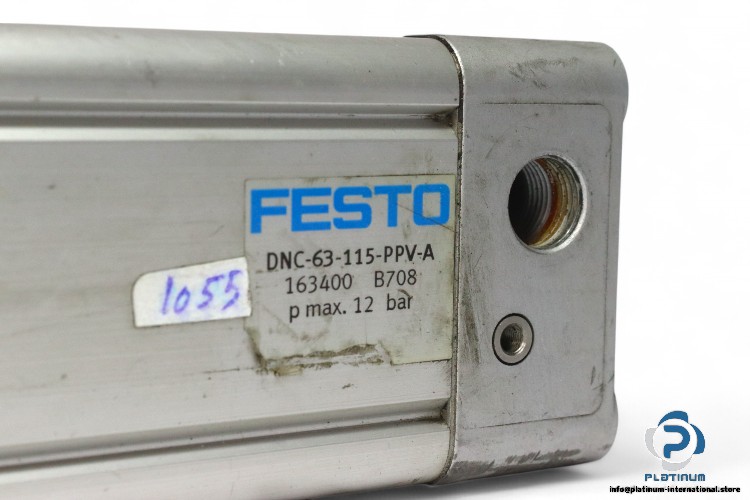

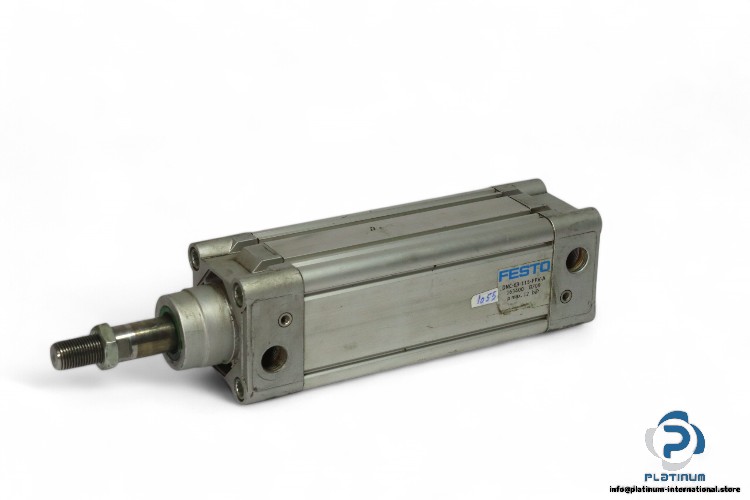

FESTO ISO Cylinder DNC-63-115-PPV-A
The FESTO ISO Cylinder DNC-63-115-PPV-A is designed for precise motion control in pneumatic systems. With a bore diameter of 63 mm and a stroke of 115 mm, this cylinder ensures reliable performance in various industrial applications. Featuring a male piston rod end and square shape, it is ideal for space-efficient installations and robust operation.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC63115PPVA
Part No.: 163400
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 115 mm
- Bore x Stroke: 63 x 115 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 270 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
