Festo DNC-63-45-PPV ISO Cylinder
Used
In stock3 unitsReady to ship
ISO Cylinder
FESTO ISO Cylinder DNC-63-45-PPV is designed for efficient motion control with a 63 mm bore diameter, 45 mm stroke, and maximum pressure of 10 bar. Ideal for compressed air applications with a square shape and male piston rod end.3/863AirboreCompressedconnectionCylinderdiameterDNC-63-45-PPVDoubleEndFestoGIndustrialISOmalemmOperationPistonPneumaticROD
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

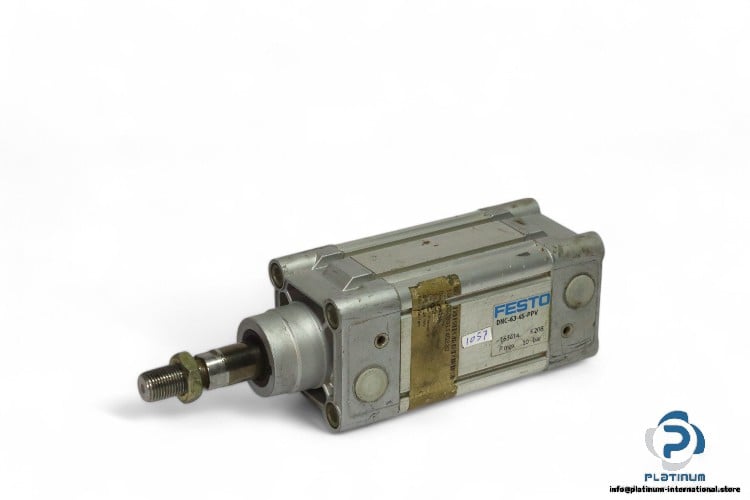

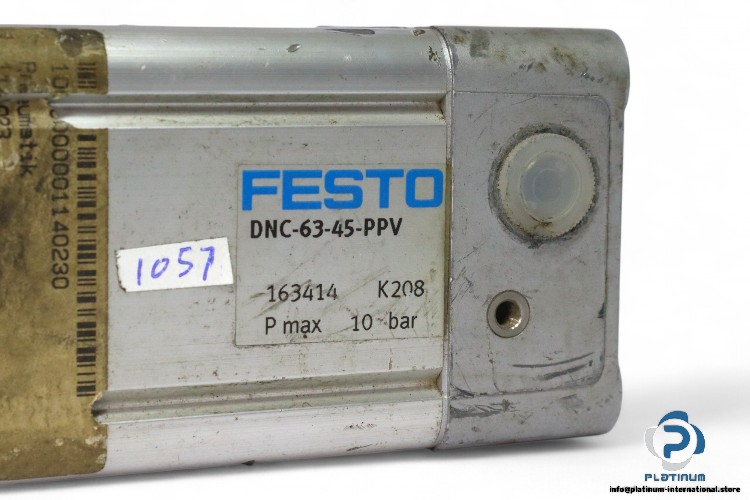

FESTO ISO Cylinder DNC-63-45-PPV
The FESTO ISO Cylinder DNC-63-45-PPV is designed for efficient motion control in industrial systems. Featuring a robust design and made for use with compressed air, this cylinder offers precise and reliable performance with a bore diameter of 63 mm and a stroke of 45 mm, ideal for various pneumatic applications.
Manufacturer: FESTO
Model: DNC6345PPV
Part No.: 163414
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 45 mm
- Bore x Stroke: 63 x 45 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 205 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
