Festo DNC-63-50PPV-A ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
FESTO ISO Cylinder DNC-63-50PPV-A designed for reliable pneumatic operation with a 63 mm bore diameter, 50 mm stroke, and 10 bar max pressure. Features male piston rod end and G 3/8 pneumatic connection.3/85063AirboreCompressedconnectionCylinderdiameterDNC-63-50PPV-ADoubleEndFestoGIndustrialISOmalemmOperationPistonPneumaticRODShaSquareStrokeSystems
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

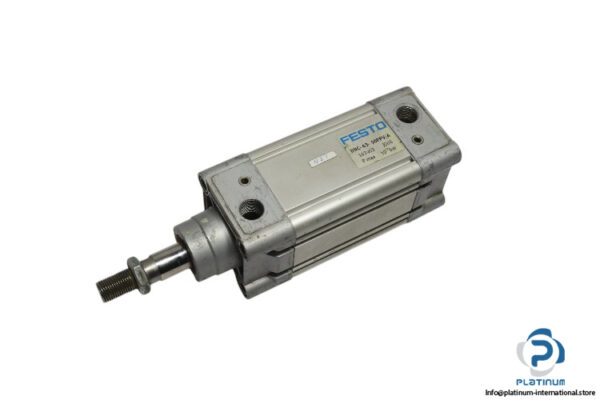

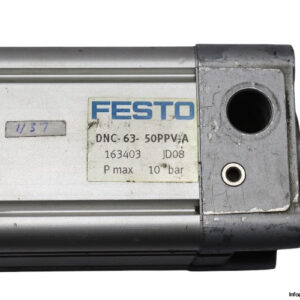

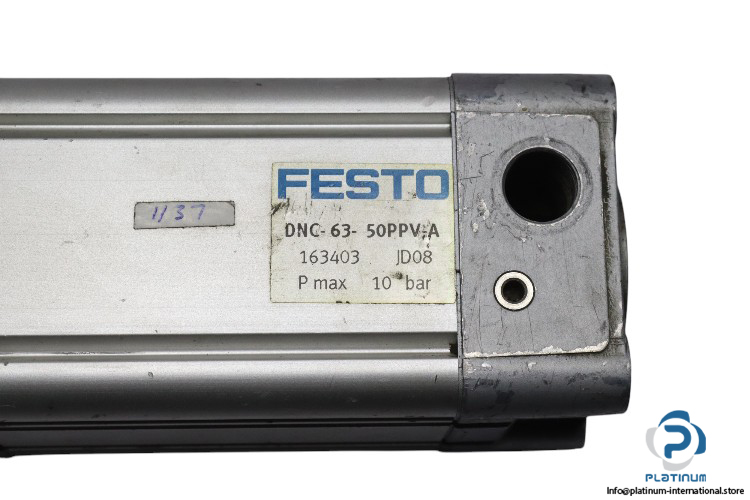

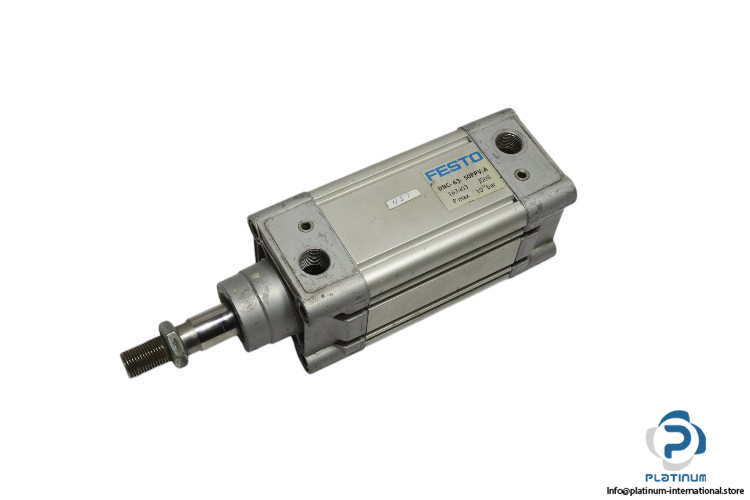

FESTO ISO Cylinder DNC-63-50PPV-A
The FESTO ISO Cylinder DNC-63-50PPV-A is designed for precise and efficient pneumatic control in industrial applications. With a bore diameter of 63 mm and a stroke of 50 mm, it offers reliable performance for various systems requiring high-pressure and compressed air operation.
Manufacturer: FESTO
Model: DNC-63-50PPV-A
Part No.: 163403
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 50 mm
- Bore x Stroke: 63 x 50 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 205 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
