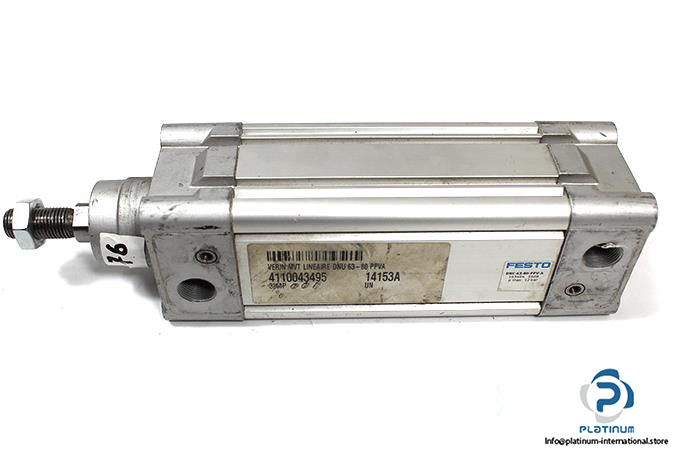

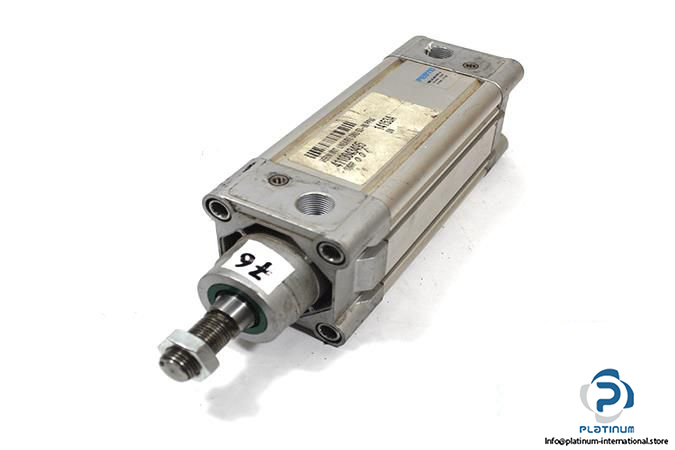

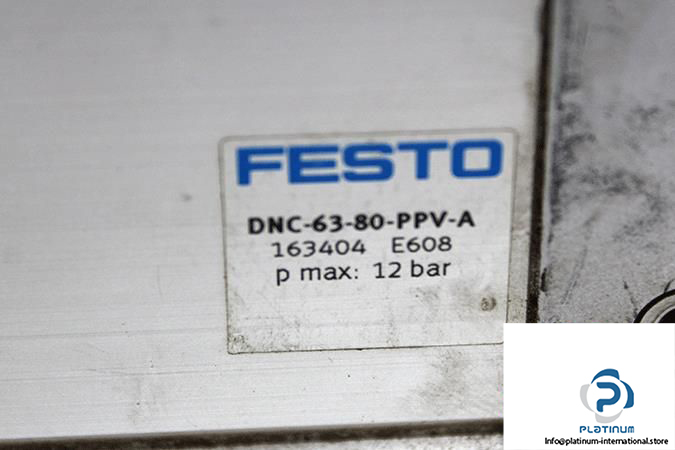

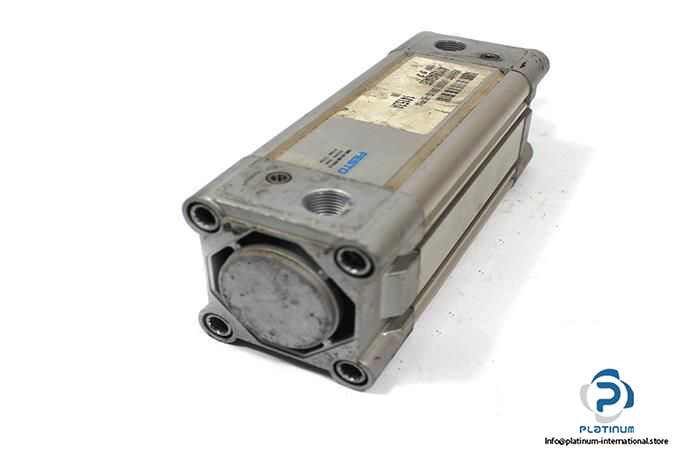

Festo DNC-63-80-PPV-A Pneumatic Actuator
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-63-80-PPV-A
Part No.: 163404
Media: Compressed Air
Bore Diameter: 63 mm
Stroke: 80 mm
Bore X Stroke: 63×80 mm
Rod Diameter: 20 mm
Fram Dimensions: 75X230 mm
Pneumatic Connection: G3/8
Max pressure: 12 bar
Mode of Operation: Double
Piston Rod End: Male
Shape: Square
Rod Direction: One Sid
