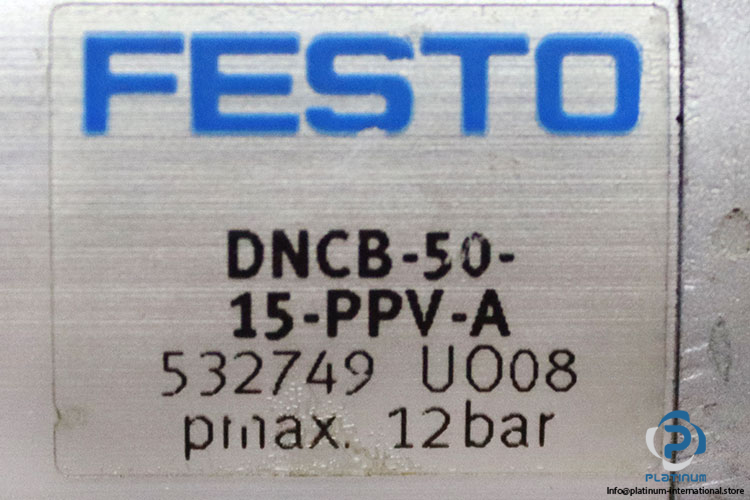

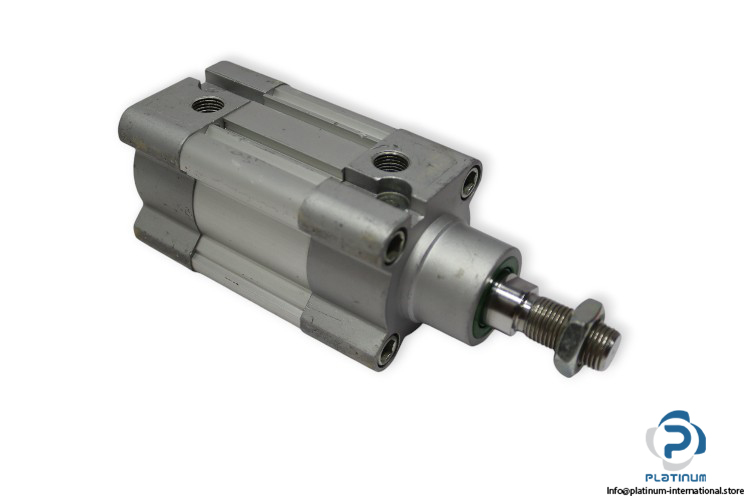

Festo DNCB-50-15-PPV-A ISO Cylinder

Manufacturer: Festo
Type: ISO Cylinder
Model: DNCB5015PPVA
Part. No: 532749


Media: Compressed Air
Stroke (mm): 15
Bore diameter (mm): 50
BorexStroke (mm): 50×15
Rod diameter (mm): 20
Fram Dimensions (mm): 150×64
Maximum pressure (bar): 12
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
