Festo DNG-32-160-PPV-A ISO Cylinder
Used
In stock1 unitReady to ship
ISO CYLINDER
High-efficiency pneumatic ISO cylinder from Festo, with 32 mm piston, 160 mm stroke, and adjustable cushioning. Designed for double-acting industrial motion applications using compressed air.16032ActingActuatorAdjustableAirCompressedCushioningCylinderDNG-32-160-PPV-ADoubleFestoIndustrialISOM10x1.25mmPistonPneumaticRODStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

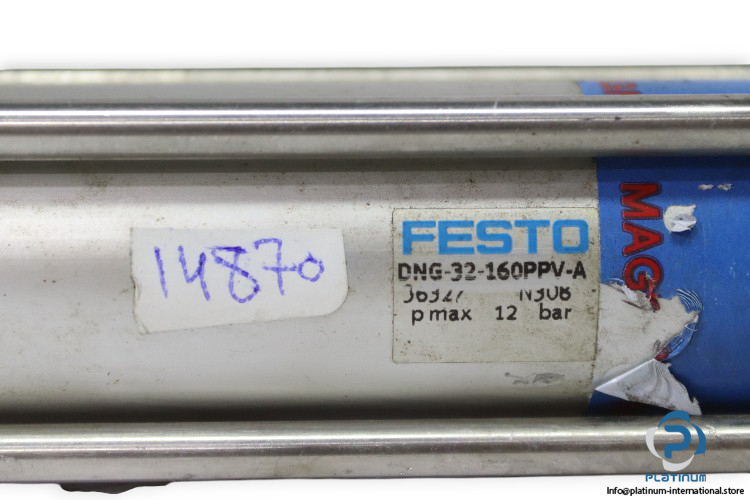

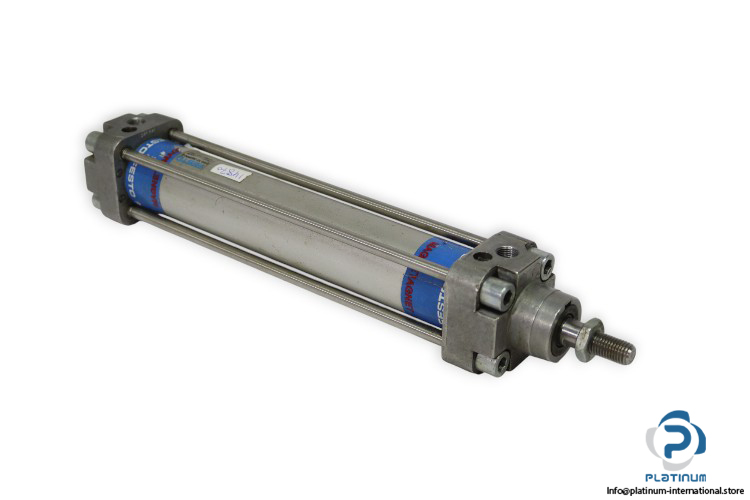

FESTO DNG-32-160-PPV-A ISO CYLINDER
The Festo DNG-32-160-PPV-A is a high-performance ISO pneumatic cylinder engineered for industrial automation systems requiring reliable and adjustable motion control. Featuring double-acting operation, pneumatic cushioning, and robust aluminum housing, it ensures long service life and precision under variable conditions.
Manufacturer: Festo
Type: ISO Cylinder
Model: DNG-32-160-PPV-A
Part No.: 36327
Code: N308
| Connection | 1/8 inch |
| Piston | 32 mm |
| Stroke | 160 mm |
| Pressure | 12 bar |
| Media | Compressed Air |
| Piston Rod Thread | M10x1,25 |
| Ambient Temperature | -20 to 80 °C |
| Mode of Operation | Double |
| Piston Rod End | Male |
| Cover Material | Aluminium |
| Cushioning PPV | Pneumatic cushioning adjustable at both ends |
