Festo DNGZK-160-125-PPV-A ISO Cylinder

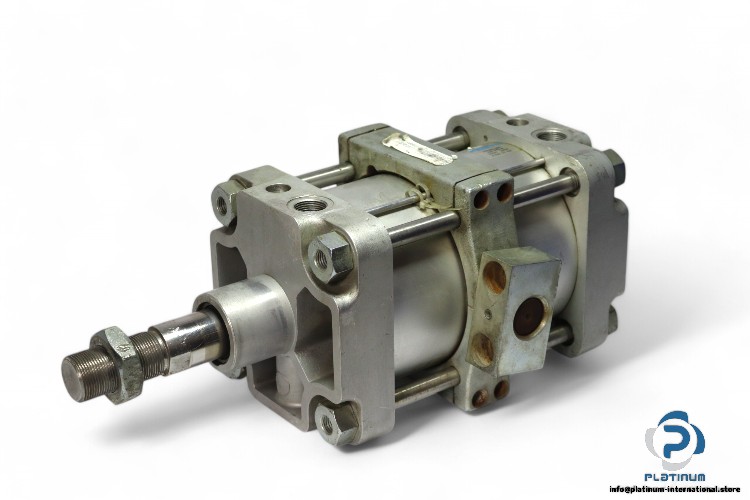

FESTO DNGZK-160-125-PPV-A ISO CYLINDER

The FESTO DNGZK-160-125-PPV-A ISO Cylinder offers exceptional performance and durability for industrial applications. Designed to handle compressed air, this double-acting ISO cylinder provides reliable motion control with a 160 mm bore and a 125 mm stroke length.

Manufacturer: FESTO

Type: ISO CYLINDER

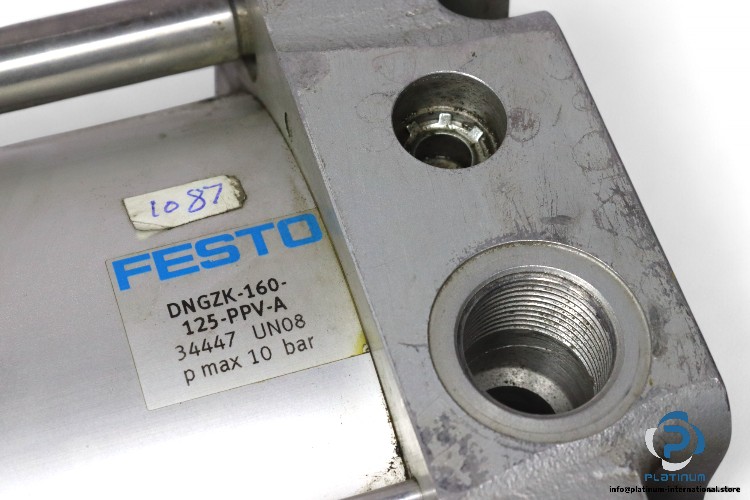

Model: DNGZK-160-125-PPV-A

Part No.: 34447

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 160 mm
• Stroke: 125 mm
• Bore X Stroke: 160X125 mm
• Rod Diameter: 40 mm
• Frame Dimensions: 185X360 mm
• Pneumatic Connection: G3/4
• Max Pressure: 10 bar
• Mode of Operation: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
