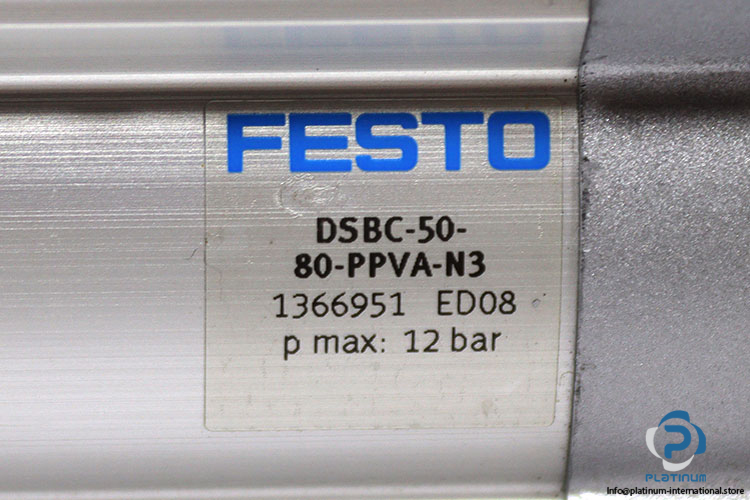

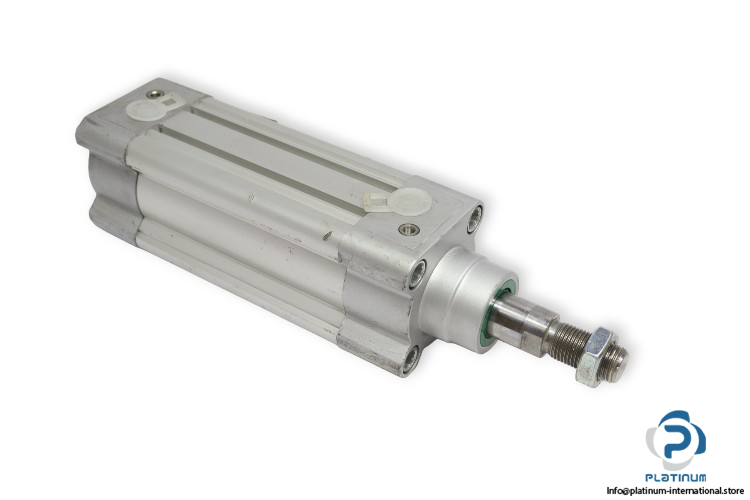

Festo DSBC-50-80-PPVA-N3 ISO Cylinder

Manufacturer: Festo
Type: ISO Cylinder
Model: DSBC5080PPVAN3
Part. No: 1366951


Media: Compressed Air
Stroke (mm): 80
Bore diameter (mm): 50
BorexStroke (mm): 50×80
Rod diameter (mm): 20
Fram Dimensions (mm): 215×64
Maximum pressure (bar): 12
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
