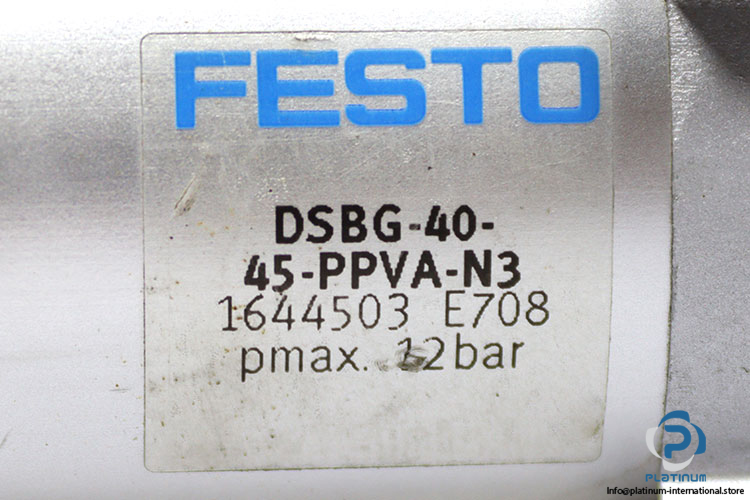

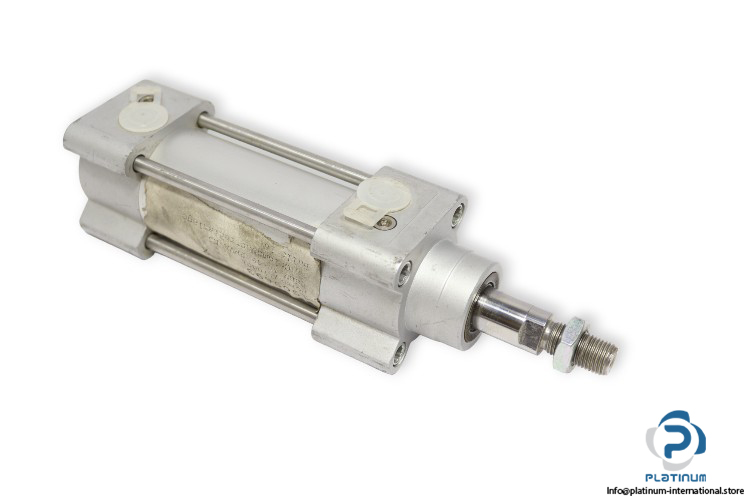

Festo DSBG-40-45-PPVA-N3 ISO Cylinder

Manufacturer: Festo
Type: ISO Cylinder
Model: DSBG4045PPVAN3
Part. No: 1644503


Media: Compressed Air
Stroke (mm): 45
Bore diameter (mm): 40
BorexStroke (mm): 40×45
Rod diameter (mm): 16
Fram Dimensions (mm): 175×54
Maximum pressure (bar): 12
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
