Festo DSN-20-160PPV ISO Cylinder
Used
In stock2 unitsReady to ship
Festo DSN-20-160-PPV ISO Cylinder “ Double-acting pneumatic cylinder with 160 mm stroke and 20 mm piston. Features G1/8 connection, adjustable cushioning, and rugged construction for industrial systems.
16020ActingActuatorAdjustableAluminumAutomationconnectionCushioningCylinderDoubleDSN-20-160-PPVFestoG1/8High-AlloyIndustrialISOmmPistonPneumaticSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

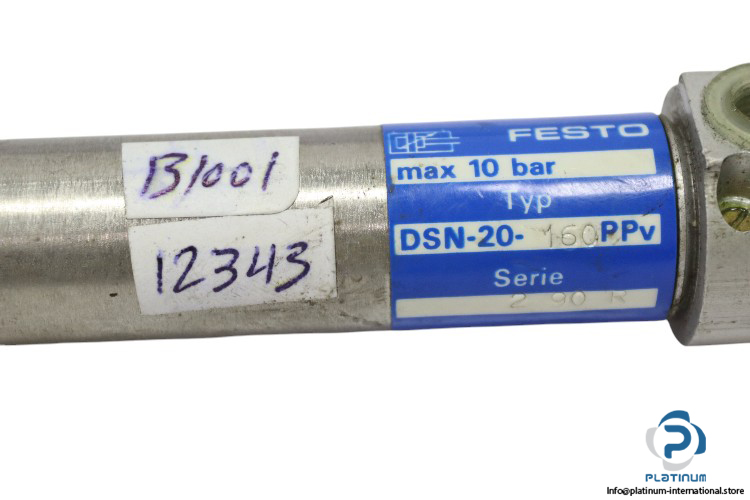

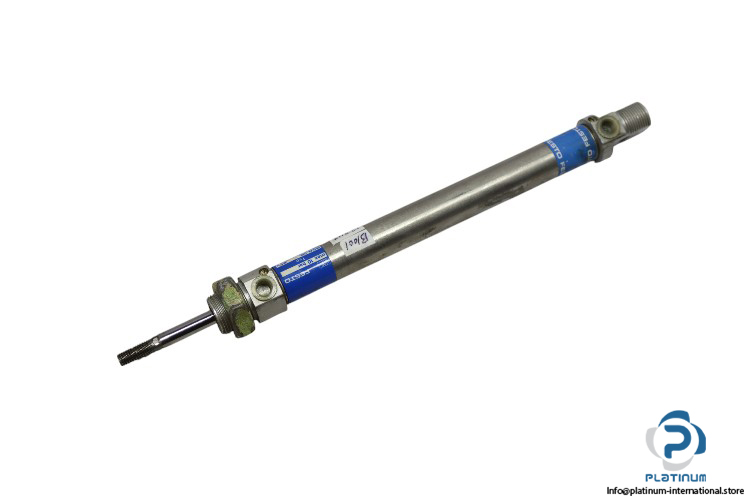

Festo DSN-20-160-PPV ISO Cylinder
The Festo DSN-20-160-PPV is a high-quality ISO-standard pneumatic cylinder engineered for precision and durability in automated systems. With a long 160 mm stroke and robust materials, it delivers reliable double-acting motion and adjustable pneumatic cushioning on both ends for enhanced control and performance.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSN-20-160-PPV
| Media | Compressed Air |
| Piston Diameter | 20 mm |
| Stroke | 160 mm |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Pneumatic Connection | G1/8 |
| Operation Mode | Double Acting |
| Piston Rod Thread | Male |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Operating Pressure | Max. 10 bar |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Steel |
| Material “ Cylinder Barrel | High-Alloy Steel |
