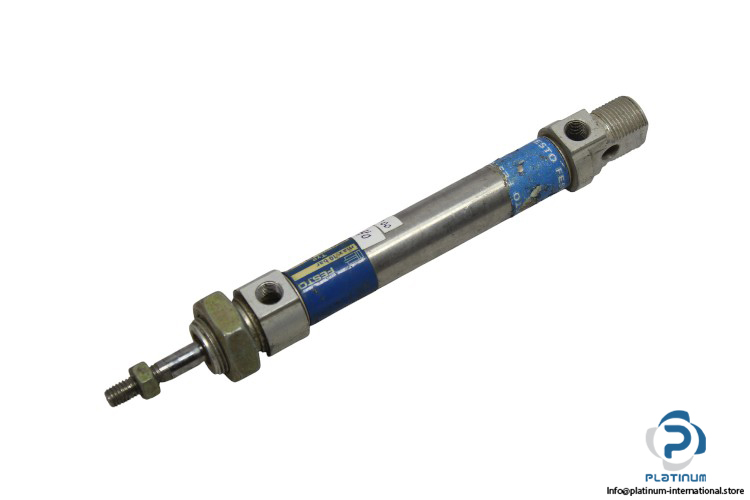

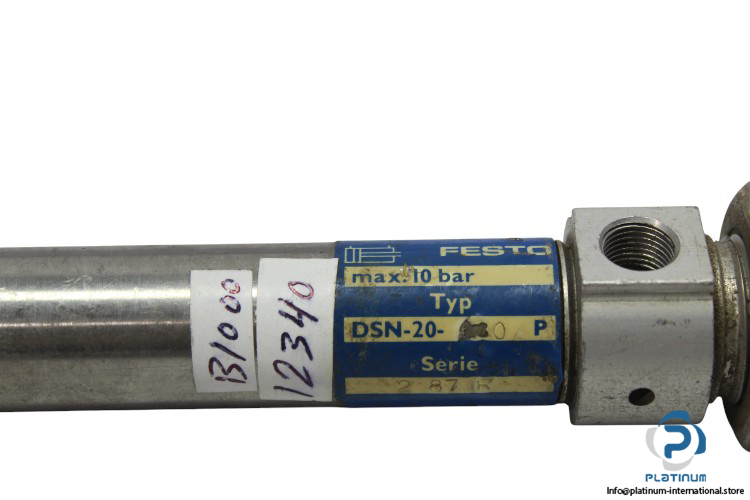

Festo DSN-20-80P Pneumatic Cylinder
Used
In stock1 unitReady to ship
Festo DSN-20-80-P Pneumatic Cylinder “ Compact double-acting cylinder with 20 mm piston and 80 mm stroke. Features G1/8 connection, flexible cushioning, and high-strength corrosion-resistant materials.
2080ActingActuatorAirAutomationCompactCorrosion-resistantCylinderDoubleDSN-20-80-PFestoG1/8IndustrialLinearmmPistonPneumaticStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Festo DSN-20-80-P Pneumatic Cylinder
The Festo DSN-20-80-P is a high-precision pneumatic cylinder designed for linear motion applications in industrial automation. With a 20 mm piston diameter and 80 mm stroke, it offers efficient double-acting operation, robust build quality, and smooth performance under varying pressure and temperature conditions.
Manufacturer: Festo
Type: Pneumatic Cylinder
Model: DSN-20-80-P
| Media | Compressed Air |
| Piston Diameter | 20 mm |
| Stroke | 80 mm |
| Cushioning | Flexible Cushioning Rings/Plates at Both Ends |
| Pneumatic Connection | G1/8 |
| Operation Mode | Double Acting |
| Piston Rod Thread | Male |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Operation Pressure | Max. 10 bar |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Steel, Non-Corrosive |
| Material “ Cylinder Barrel | High-Alloy Steel, Non-Corrosive |
