Festo DSNGZK-63-140-PPV-A ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DSNGZK-63-140-PPV-A is a high-performance pneumatic cylinder with a bore diameter of 63 mm and stroke of 140 mm. Featuring a G 3/8 pneumatic connection, it operates with compressed air and withstands up to 12 bar pressure.63AirComponentsCompressedCylinderdouble-actingDSNGZK-63-140-PPV-AEndFestohigh-pressureIndustrialISOmalemmPistonPneumaticRODSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

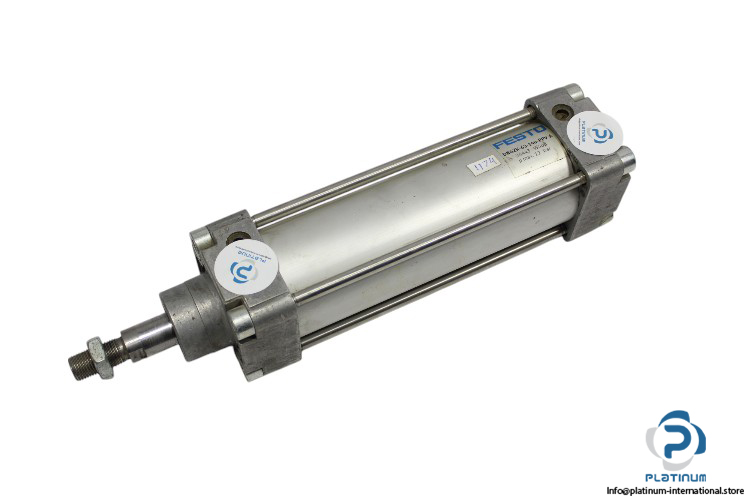

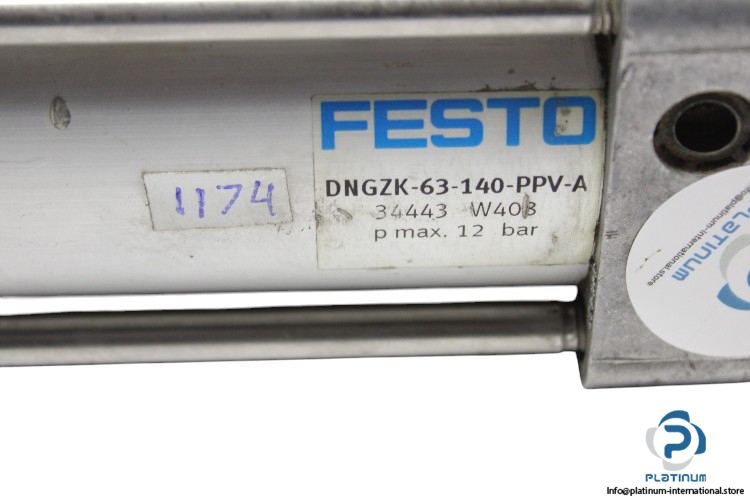

FESTO ISO Cylinder DSNGZK-63-140-PPV-A
The FESTO ISO Cylinder DSNGZK-63-140-PPV-A is a high-quality pneumatic cylinder designed for precise and efficient linear motion. Ideal for industrial applications, this double-acting cylinder is built to withstand high pressure and offers durable performance with compressed air media.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DSNGZK-63-140-PPV-A
Part No.: 34443
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 140 mm
- Bore x Stroke: 63 x 140 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 74 x 295 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
