Festo DSNU-20-16-P-A ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
The Festo DSNU2016PA ISO cylinder is designed for double-acting pneumatic applications with a 20 mm piston diameter and 16 mm stroke. Made from high-quality materials including high-alloy stainless steel, it provides reliable performance in varying temperatures from -20 to 80 °C.20ActingActuatorCylinderdiameterDoubleDsnuDSNU2016PAFestoHigh-AlloyIndustrialISOmmPistonPneumaticstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

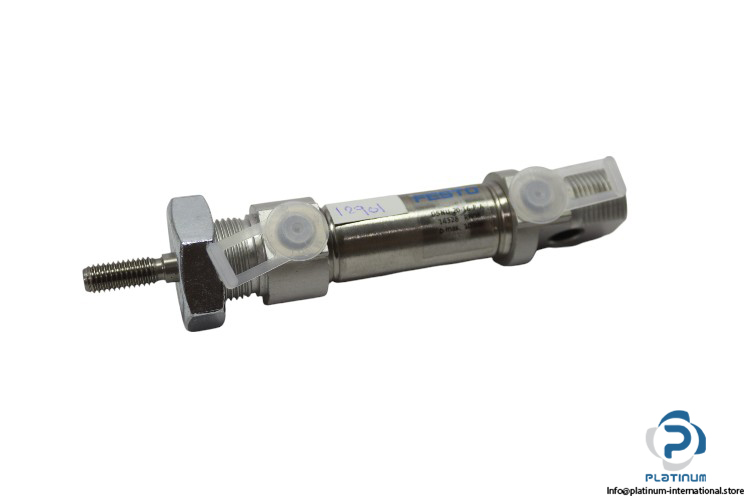

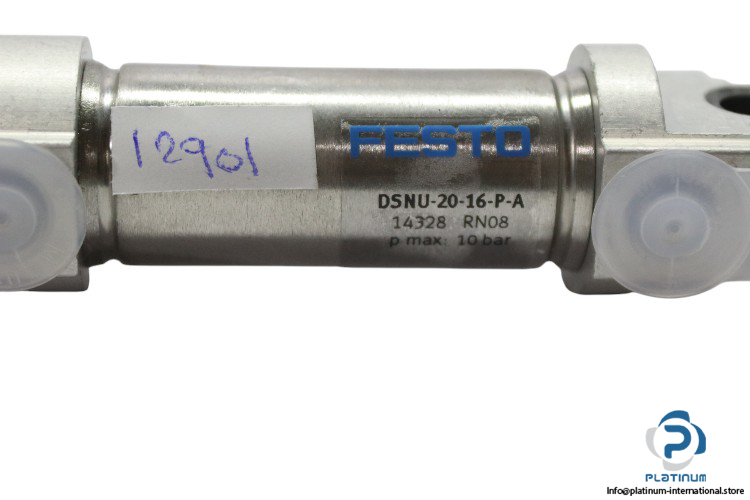

Festo DSNU2016PA “ ISO Cylinder
The Festo DSNU2016PA ISO cylinder is a high-performance pneumatic actuator designed for precise and efficient motion control in industrial systems. It is equipped with a male piston rod end, ideal for double-acting operation, and features a durable construction made from high-alloy stainless steel and aluminum.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU2016PA
Part No: 14328
| Piston Diameter | 20 mm |
| Stroke | 16 mm |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double acting |
| Operating Pressure Max. | 10 bar |
| Piston Rod End | Male |
| Ambient Temperature | -20 to 80 °C |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy stainless steel |
| Material Cylinder Barrel | High-alloy stainless steel |
