FESTO DSNU-32-50-PPV Round cylinders
New
In stock1 unitReady to ship
Round Cylinder
Festo DSNU-32-50-PPV pneumatic round cylinder with 50 mm stroke, 32 mm piston diameter, and double-acting design. Features adjustable cushioning, stainless steel build, and 10 bar max pressure capacity.ActingAdjustableAutomationCushioningCylinderDoubleDsnuDSNU-32-50-PPVFestoHighIndustrialPneumaticPressureRoundSeriesstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

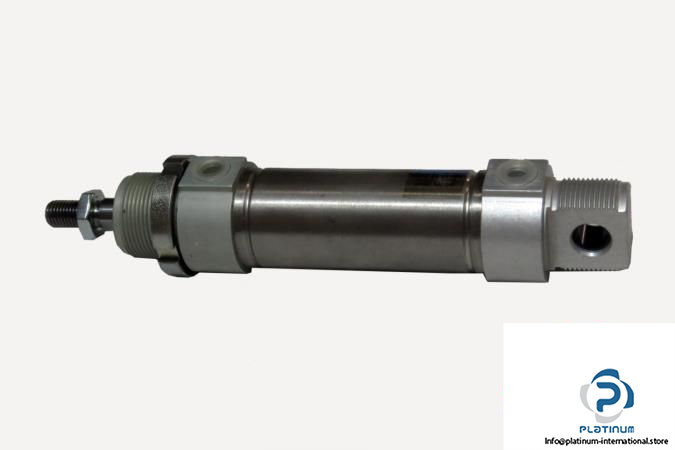

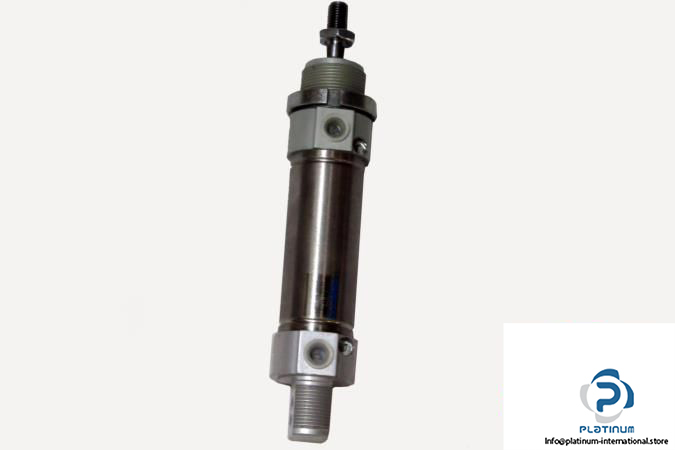

Festo DSNU-32-50-PPV Round Cylinder
The Festo DSNU-32-50-PPV is a high-performance round piston rod cylinder from the DSNU series, designed for reliable motion control in pneumatic systems. Built with premium materials, it ensures durability, precision, and efficiency in industrial automation.
Manufacturer: Festo
Type: Round Cylinder / Piston Rod Cylinder

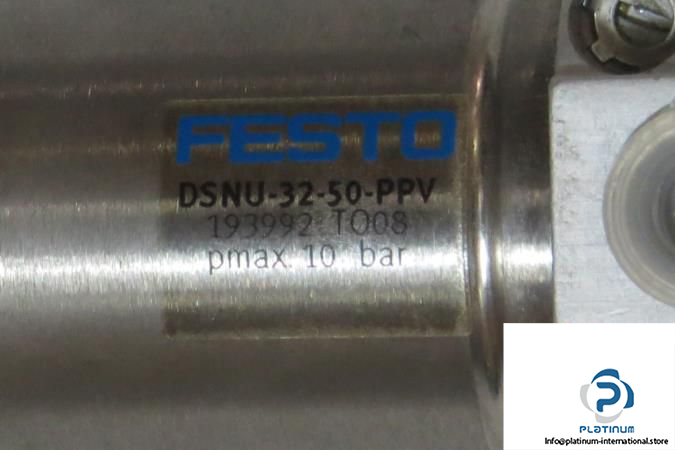

Model: DSNU-32-50-PPV
Part No.: 193992
Ref. Code: TO08
Series: DSNU
| Stroke Length | 50 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | M10x1.25 |
| Pneumatic Connection | G1/8 |
| Pneumatic Cushioning | Adjustable at both ends |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-acting |
| Material Cover | Wrought Aluminum Alloy |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy Stainless Steel |
| Material Cylinder Barrel | High-alloy Stainless Steel |
| Ambient Temperature | -20 to 120 °C |
