Festo DSW-40-60-P-B Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
FESTO Round Cylinder DSW-40-60-P-B with 40 mm piston diameter, 60 mm stroke, and 10 bar maximum pressure. Designed for high-performance pneumatic applications with double acting operation and a G 1/4 port size.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

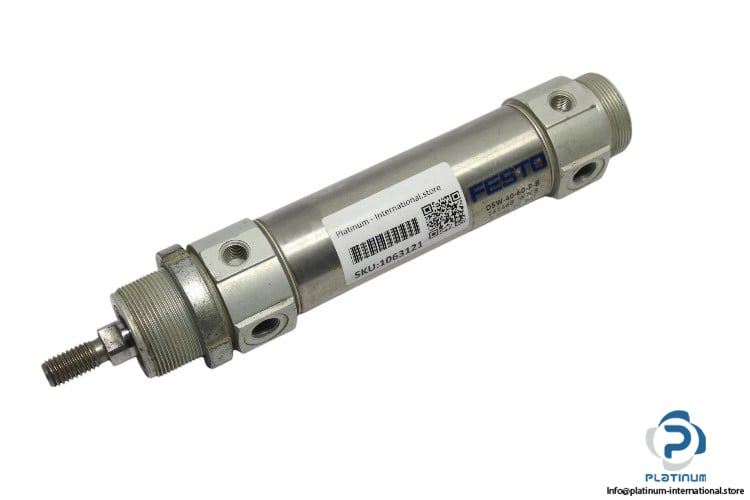

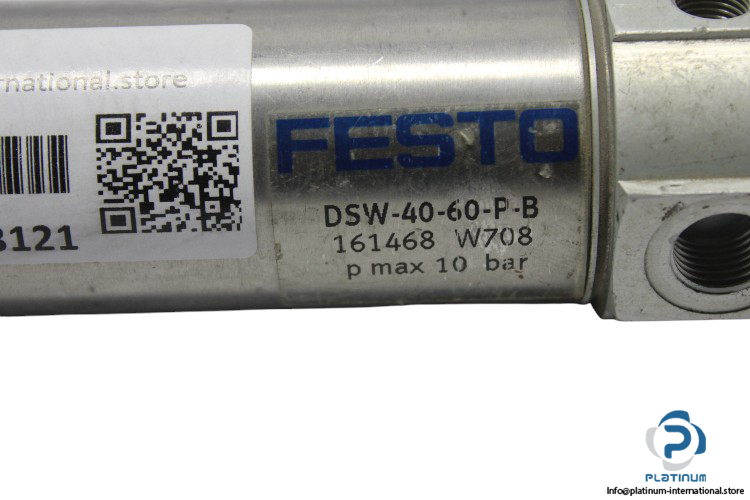

FESTO Round Cylinder DSW-40-60-P-B
The FESTO Round Cylinder DSW-40-60-P-B is designed for high-performance pneumatic applications, offering smooth and precise movement. With a piston diameter of 40 mm and a stroke of 60 mm, this double-acting cylinder provides reliable actuation for various industrial systems. It operates at a maximum pressure of 10 bar and features a G 1/4 port size, making it suitable for a wide range of applications. The cylinder is designed to operate in temperatures up to 80 °C, making it ideal for environments requiring durable and efficient motion control.
Manufacturer: FESTO
Type: Round Cylinder
Model: DSW-40-60-P-B
Part No.: 161468
Technical Specifications
- Fluid: Air
- Piston Diameter: 40 mm
- Stroke: 60 mm
- Pressure Max.: 10 bar
- Operation Mode: Double Acting
- Port Size: G 1/4
- Temperature Max.: 80 °C
