Festo DSW-50-30 PPV Pneumatic Cylinder
Used
In stock1 unitReady to ship
Pneumatic Cylinder
The Festo DSW-50-30PPV Double Acting Cylinder with 50 mm bore and 30 mm stroke features G1/4 connection, max. 10 bar pressure, and adjustable cushioning for smooth industrial automation performance.3050ActingAdjustableAutomationboreconnectionCushioningCylinderDoubleDSWDSW-50-30PPVFestoG1/4IndustrialmmPneumaticSeriesStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

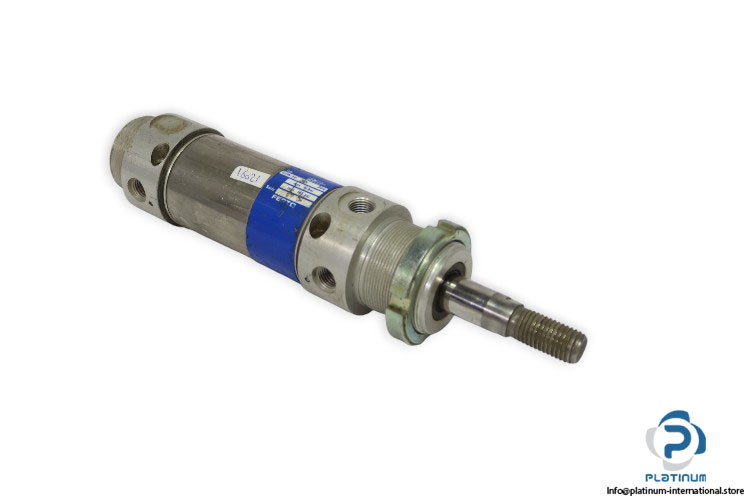

Festo DSW-50-30PPV Pneumatic Cylinder
The Festo DSW-50-30PPV is a high-performance pneumatic cylinder from the DSW series, designed for precise and reliable motion control in industrial automation. With its robust build and adjustable cushioning, it ensures smooth operation under demanding conditions.
Manufacturer: Festo
Type: Pneumatic Cylinder
Model: DSW-50-30PPV
Series: DSW
| Fluid | Air |
| Cylinder Action | Double Acting |
| Bore Diameter | 50 mm |
| Stroke | 30 mm |
| Working Pressure | Max. 10 bar |
| Connection | G1/4 |
| Cushioning | Pneumatic cushioning, adjustable at both ends (PPV) |
| End Rod | Male one side |
| Rod Diameter | 16 mm |
| Ambient Temperature | -20 °C to 80 °C |
