Festo DSW-50-50-P Round Cylinder
Used
In stock2 unitsReady to ship
Round Cylinder
Festo DSW-50-50 P round cylinder with 50 mm stroke, 50 mm piston diameter, and double-acting function. Built for reliable pneumatic automation with G1/4 connection and 10 bar max pressure.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

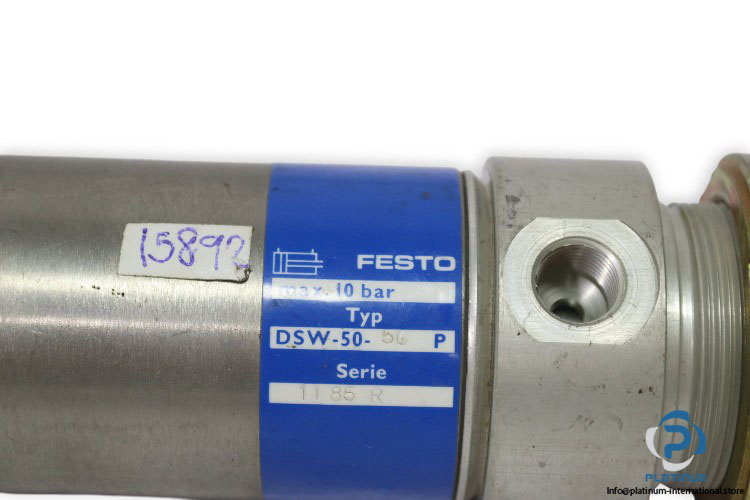

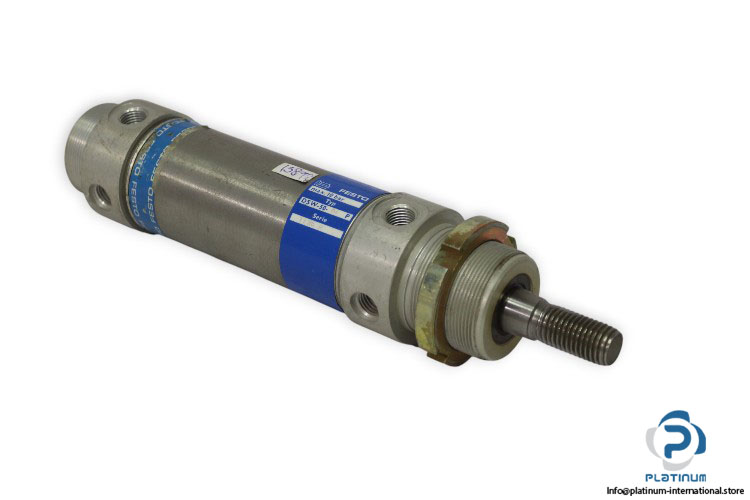

Festo DSW-50-50 P Round Cylinder
The Festo DSW-50-50 P is a precision-engineered round cylinder from the DSW series, designed for reliable performance in pneumatic automation systems. With a 50 mm stroke and 50 mm piston diameter, it delivers consistent double-acting motion under demanding industrial conditions.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-50-50 P
Series: DSW / 11 85 R
| Stroke Length | 50 mm |
| Piston Diameter | 50 mm |
| Piston Rod Thread | 12 mm (Male) |
| Pneumatic Connection | G1/4 |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double Acting |
| Rod Direction | One Side |
| Temperature Range | -20 to 80°C |
