Festo ESN-12-10P ISO Cylinder
Used
In stock4 unitsReady to ship
Festo ESN-12-10-P ISO Cylinder “ Compact, single-acting pneumatic cylinder with 10 mm stroke and 12 mm piston diameter. Built with durable materials and flexible cushioning for industrial applications.
1012ActingActuatorAluminumAutomationCompactCylinderESN-12-10-PFestoG1/8High-AlloyIndustrialISOmmPistonPneumaticSingleSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

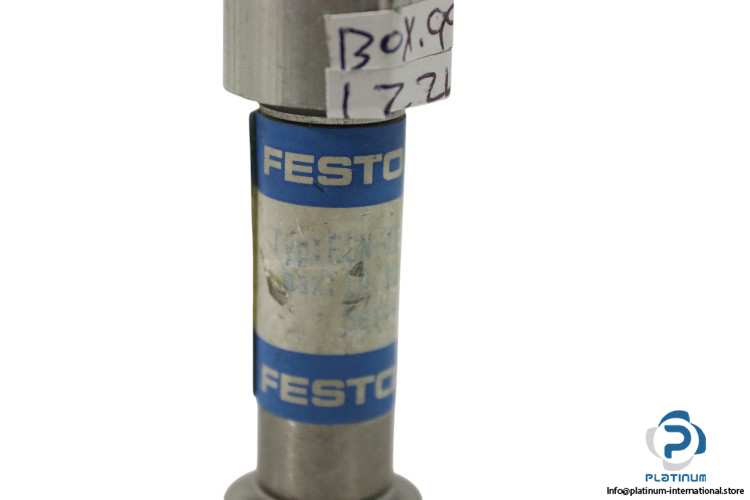

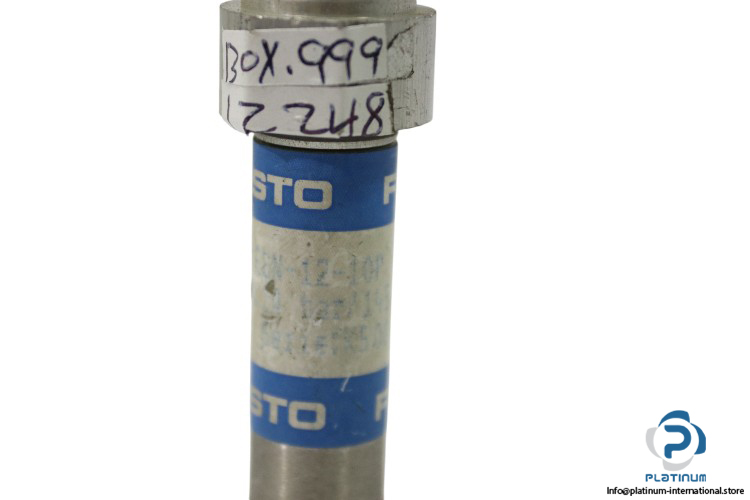

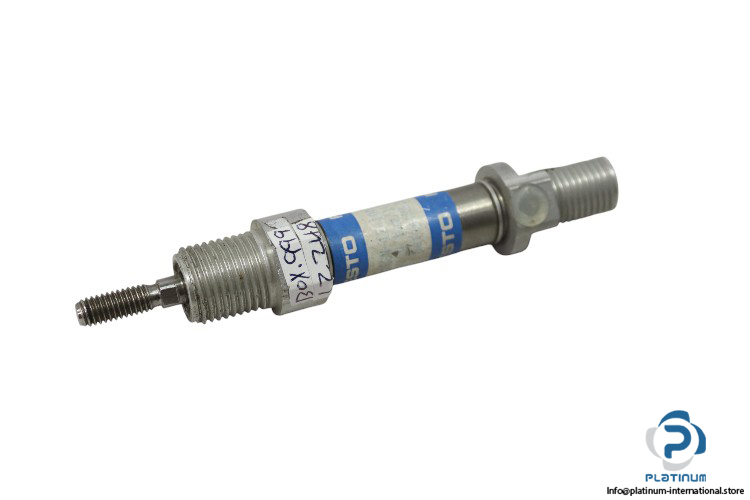

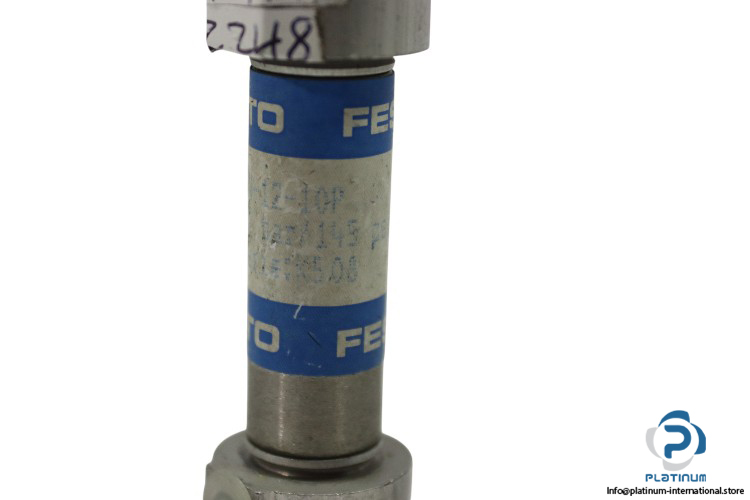

Festo ESN-12-10-P ISO Cylinder
The Festo ESN-12-10-P is a compact single-acting ISO cylinder designed for precise actuation in pneumatic applications. With a 12 mm piston diameter and 10 mm stroke, it features durable materials, flexible end cushioning, and a male-threaded piston rod for efficient operation in compact installations.
Manufacturer: Festo
Type: ISO Cylinder
Model: ESN-12-10-P
| Stroke | 10 mm |
| Piston Diameter | 12 mm |
| Cushioning | Flexible Cushioning Rings/Plates at Both Ends |
| Port Size | 5 mm |
| Piston-Rod End | Male Thread |
| Mode of Operation | Single-Acting |
| Operating Medium | Compressed Air |
| Pressure | Max. 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Cover Material | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Steel |
| Material “ Cylinder Barrel | High-Alloy Steel |
