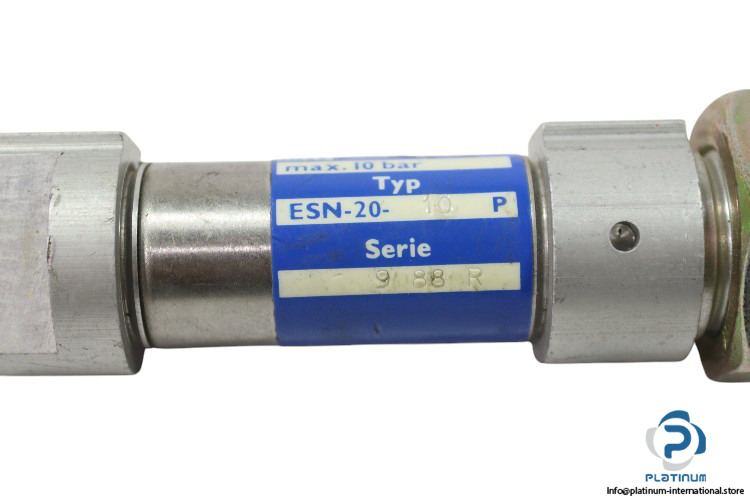

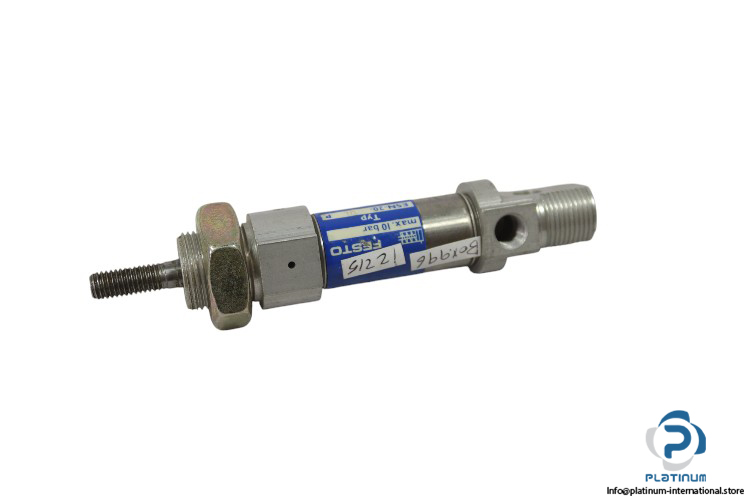

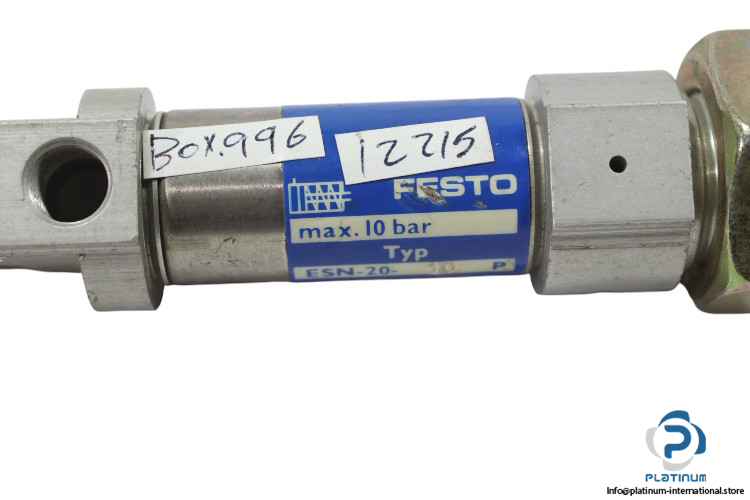

Festo ESN-20-10-P ISO Cylinder
New
In stock1 unitReady to ship
Festo ESN2010P ISO Cylinder “ Compact pneumatic actuator with 20 mm piston diameter, 10 mm stroke, and double-acting design. Supports up to 10 bar pressure and delivers 169 N force at 6 bar.
20mmActingActuatorAutomationCompactCylinderDoubleESN2010PFestoG1/8HighIndustrialISONBRPistonPneumaticPressureSealsShortStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Festo ESN2010P ISO Cylinder
The Festo ESN2010P is a compact, precision-engineered ISO pneumatic cylinder designed for efficient and reliable performance in industrial automation systems. With a double-acting mechanism and robust construction, it ensures consistent linear motion under high pressure and a wide temperature range.
Manufacturer: Festo
Type: ISO Cylinder
Model: ESN2010P
| Piston Diameter | 20 mm |
| Stroke | 10 mm |
| Pneumatic Connection | G1/8 |
| Operating Medium | Compressed Air |
| Mode of Operation | Double Acting |
| Maximum Operating Pressure | 10 bar |
| Cushioning | Flexible Cushioning Rings/Plates at Both Ends |
| Shape | Circular |
| Piston Rod Thread | Male |
| Variants | Single-Ended Piston Rod |
| Rod Direction | One Side |
| Ambient Temperature | -20 to 80 °C |
| Material for Cover | Wrought Aluminum Alloy |
| Material for Seals | NBR |
| Material for Piston Rod | High Alloy Steel, Non-Corrosive |
| Material for Cylinder Barrel | High Alloy Steel, Non-Corrosive |
| Theoretical Force at 6 bar, Advance Stroke | 169 N |
